GS166M

G-STAR Pte. Ltd.
填充因子
填充因子
80.12 - 82.18 %
电池片效率
电池片效率
21.5 - 22.9 %
电 池 技 术
技术
背钝化 (PERC)
功率范围
功率范围
5.89 - 6.28 Wp
地区
地区
新加坡 新加坡
组件尺寸
尺寸
166×166 mm
电池片厚度
电池片厚度
190 ± 30 µm
栅线宽度
栅线宽度
01±0.03 mm
焊垫宽
焊垫宽
1.3±0.25 mm
焊垫材料
焊垫材料
联系生产商
该产品不再生产。
  • Clean Edge design prevents water and dust buildup, boosting energy yield by 6-15%

  • Advanced N-type TOPCon technology

  • All-black design for a harmonious and aesthetically pleasing look

  • High wear resistance and waterproof, suitable for humid, windy, and dusty environments

  • Excellent Anti-PID performance

产品特点

产品型号
5.89 5.92 5.95 5.98 6 6.03 6.06 6.09 6.11 6.14 6.17 6.2 6.22 6.25 6.28
电池片技术 背钝化 (PERC)
尺寸 166×166 mm
电池片厚度 190 ± 30 µm

栅线宽度 01±0.03 mm
栅线材料
减反射膜 氮化硅

焊垫宽 1.3±0.25 mm
焊垫材料
背面电场 (BSF)

峰值功率 (Pmax)
5.89 W 5.92 W 5.95 W 5.98 W 6 W 6.03 W 6.06 W 6.09 W 6.11 W 6.14 W 6.17 W 6.2 W 6.22 W 6.25 W 6.28 W
峰值工作电压 (Vmpp)
0.5684 V 0.5701 V 0.572 V 0.5742 V 0.576 V 0.5781 V 0.5799 V 0.5817 V 0.5835 V 0.5856 V 0.5873 V 0.5887 V 0.5905 V 0.5916 V 0.5933 V
峰值工作电流 (Impp)
10.371 A 10.386 A 10.401 A 10.409 A 10.424 A 10.433 A 10.448 A 10.462 A 10.477 A 10.486 A 10.503 A 10.525 A 10.54 A 10.566 A 10.582 A
开路电压 (Voc)
0.6713 V 0.6719 V 0.6726 V 0.6743 V 0.6748 V 0.6774 V 0.677 V 0.678 V 0.679 V 0.6807 V 0.6811 V 0.6822 V 0.6837 V 0.6859 V 0.6874 V
短路电流 (Isc)
10.958 A 10.974 A 10.99 A 10.996 A 11.014 A 11.021 A 11.039 A 11.046 A 11.06 A 11.075 A 11.082 A 11.09 A 11.105 A 11.1 A 11.113 A
电池片效率
21.5 % 21.6 % 21.7 % 21.8 % 21.9 % 22 % 22.1 % 22.1 % 22.3 % 22.4 % 22.5 % 22.6 % 22.7 % 22.8 % 22.9 %
填充因子 (FF)
80.12 % 80.3 % 80.45 % 80.6 % 80.79 % 80.81 % 80.98 % 81.26 % 81.41 % 81.46 % 81.73 % 81.89 % 81.97 % 82.1 % 82.18 %

温度系数(Pmax) -0.38 %/˚C
温度系数(Voc) -0.36 %/˚C
温度系数(Isc) 0.07 %/˚C
光强相关性
光强
开路电压
峰值电压
1000 W/m2
1
--
900 W/m2
0.996
--
800 W/m2
0.991
--
600 W/m2
0.988
--
400 W/m2
0.962
--

GS166M

About Us

G-STAR Pte. Ltd. is a cutting-edge high-tech enterprise that operates across the entire value chain of the solar panel industry, from producing silicon ingots and wafers to manufacturing solar cells, frames, and modules. Our expertise spans research, production, sales, and engineering technical services. Since our inception, we have adhered to a steadfast commitment to pursuing excellent quality, building a reliable brand in the photovoltaic (PV) industry. Our products undergo rigorous inspections by authoritative bodies and have garnered international recognition from entities such as ETL, TUV, and the California CEC.

At the forefront of the industry, G-STAR has implemented state-of-the-art, fully automatic component production lines and equipment. Our production technology and equipment conditions set industry standards. Our product module range encompasses varieties from 360W to 740W, including PERC, TOPCon, HJT, monofacial, bifacial, and full-black options. Widely applicable, our solar modules find use in diverse settings such as household roofs, commercial roofs, large ground power stations, and government projects. G-STAR is progressively gaining increased brand awareness in the solar photovoltaic industry.

G-STAR attaches importance to the talent development strategy, always adheres to the market orientation, and provides customers with a comprehensive service system integrating planning, design and technical guidance for undertaking large-scale power stations. With strict management measures, reliable product quality, excellent service system and low-cost control means. It has won the praise and trust of customers at home and abroad in the PV industry.

In order to jointly open up the PV market with unlimited business opportunities in the future, G-STAR will become your first choice with the best quality, the most favorable price and the best after-sales service. G-STAR always adheres to the values of "integrity, responsibility and win-win", and sincerely expects new and old customers at home and abroad to come to our company for field investigation, visit, guidance and cooperation.

Our Factory

Our Products

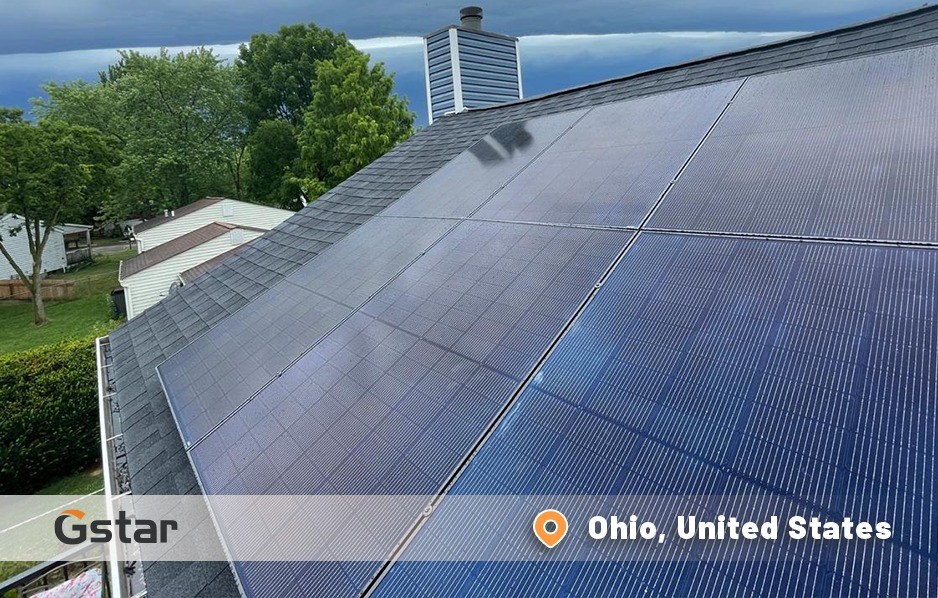

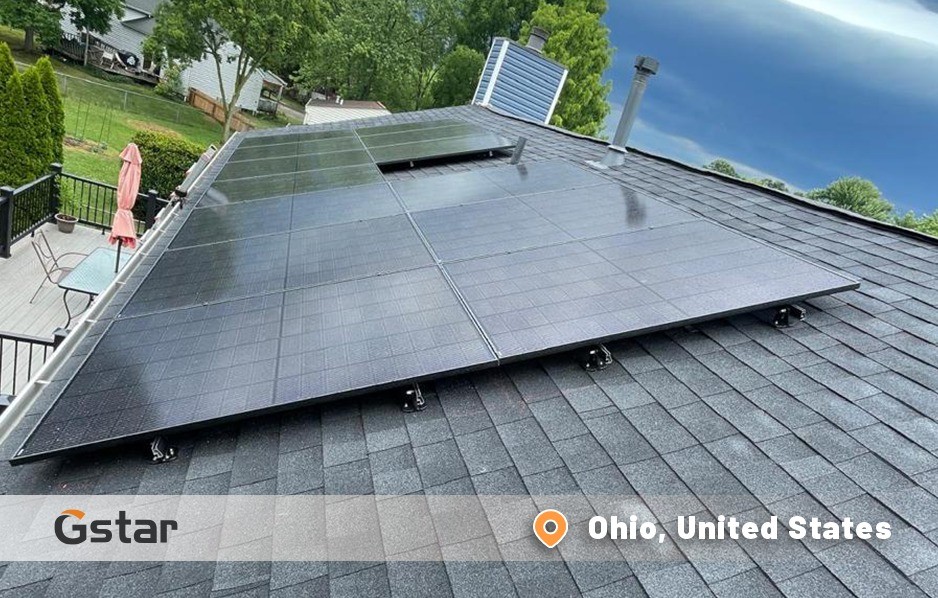

Projects

Exhibition

G-STAR Pte. Ltd.

Click to show company phone
https://www.gstarsolar.com
新加坡
60 Paya Lebar Road #06-12 Paya Lebar Square Singapore 409051
母公司: Standard Energy
该产品不再生产。
公司描述

G-STAR, founded in 2019 and headquartered in Singapore, is committed to being a trusted global provider of clean energy solutions. With a focus on both PV material manufacturing and PV system services, G-STAR aims to develop sustainable clean energy ecosystems worldwide.

G-STAR maintains a global strategy with a "1+N" model, one headquarters in Singapore, with N bases covering the United States, China, India, Mexico, Thailand, Indonesia, Laos, the Philippines, and Egypt. By 2025, G-STAR's integrated production capacity in Southeast Asia is expected to reach 3GW, and the total capacity is 17.5GW.

G-STAR's PV material manufacturing business primarily focuses on the production and processing of silicon materials, including silicon pulling and N-type silicon wafers, as well as metal materials production, including frames and mounting systems. The PV system services encompass the manufacturing of solar modules using N-type technology, providing a comprehensive range of PV products, from R&D to production and sales, catering to global markets including North America, Europe, the Asia-Pacific region, and Africa.

By integrating the PV supply chain to shape an integrated solar future, G-STAR is dedicated to pioneering a sustainable energy landscape that harnesses the full potential of solar power, fostering a brighter, cleaner, and more interconnected world.
