Products using aluminium alloy 6005-T5 (AL6005-T5) and stainless steel 304 (SUS 304), high strength, and corrosion resistance are good
Screw Pile and concrete foundations optional
Compatible with most modules and most wind loads
Smart design reduces the difficulty of the installation in the most condition
产品型号 |
|
|
---|---|---|
产品质量保证 | 15 年 | |
系统概述 | ||
类型 | 地面型 | |
支架系统排列方式 | 按行排 | |
组件边框 | 有边框,无边框 | |
组件排列方向 | 纵向,横向 | |
倾斜角度 |
|
|
抗风能力 |
|
|
雪荷载 |
|
|
一般参数 | ||
轨道材质 | 铝,不锈钢 | |
零部件材质 | 铝,不锈钢 | |
下载公司产品详情 |
AS Alumimum Solar Ground Mounting System
AS Aluminum Solar Ground Mounting System uses an anodized aluminium alloy structure, making the whole system lightweight, durable, recyclable and highly strong. Flexibility in height and angle adjustment makes the system applicable to different types of landforms. Most of the components are pre-assembled before shipment, there is no need for drill, cutting and other operations on site, simply adjust the locking to complete the installation.

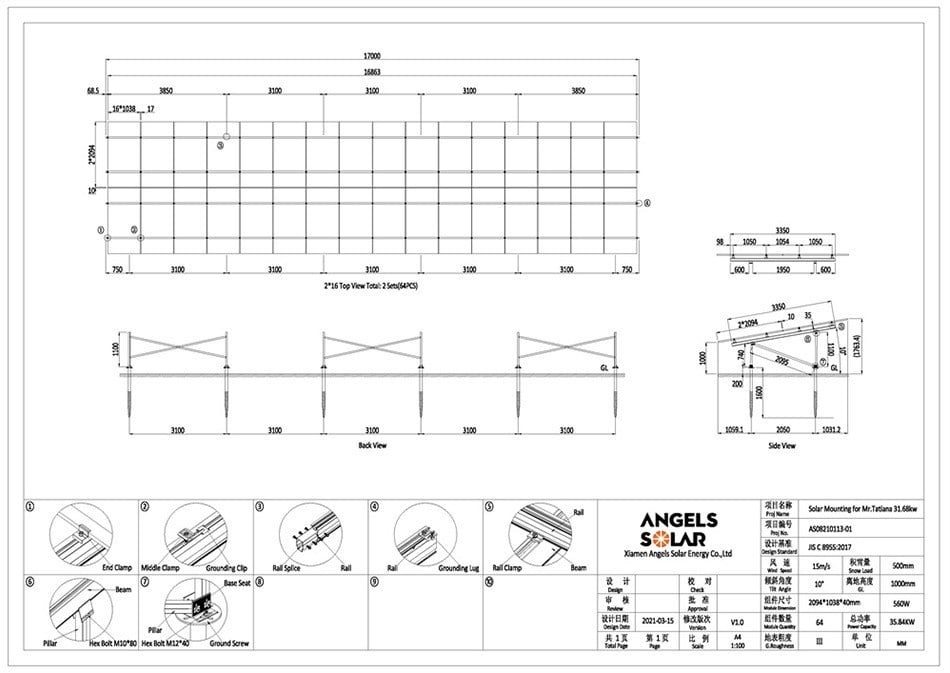

Design
It is necessary for us to design and quote
1. Solar panel info. Dinesion L_____ mm W_____ mm T_____ mm ; Power _____ watt/panel Qty. _____ pcs
2. _____ m/s wind speed and _____ KN/m2 snow load
3. Tilt angle _____ deg. (Or E °/ W °)
4. Array layout : _____ Nos. in a row × _____ Nos. in a column
5. Any special requirements Ground clearance _____
Specification
Installation Site | Open Field |
Panel Orientation | Portrait, Landscape |
Foundation Type | Concrete Base,Ground Screw |
Wind Load | 60m/s |
Snow Load | 1.4kN/m2 |
Standard | JIS 8955:2017 and AS/NZS 1170, DIN 1055 |
Warranty | 15 years |
Service life | 25 years |
Advantages | Easy Installation; Safety and Reliability; Flexibility and Adjustable |
Our Service | OEM;We Offer Professional Customization Services. |
About Angels Solar
Xiamen Angels Solar Energy Co., Ltd specializes in designing, manufacturing, and promoting solar mounting systems.
With our mother company having over 10 years of experience in ODM and manufacturing galvanized steel and aluminium structures, our expertise in metallic structures and raw materials supply chain management, as well as quality inspection and control, makes Angels Solar competitive in delivering cost-effective and solid solar mounting solutions and products.
With a dedicated and experienced R&D engineering team and an efficient supply chain, we have launched a series of solar mounting systems covering residential, commercial, and utility applications. We are determined to become an all-round solar mounting solution and product provider. 'Quality, Value, Service' is the principle we pursue. We deliver the value of mounting structures in solar projects through innovation in product design and satisfy our customers by providing professional service throughout the entire process of project planning, design, delivery, and commissioning.
Together with our customers, suppliers, and fellow companies, we look forward to building a society of sustainable development and a greener future.
厦门元聚荣能源科技有限公司是一家专业从事太阳能安装系统的设计、制造和推广的企业。
随着母公司拥有超过14年的ODM和生产镀锌钢和铝结构的经验,厦门元聚荣从2019年开始设计和提供太阳能安装系统。
在金属结构、原材料供应链管理以及质量检验和控制方面的经验,使厦门元聚荣在提供具有成本效益和可靠性的太阳能安装解决方案和产品方面具有竞争力。
我们拥有专业、经验丰富的研发工程团队和高效的供应链,推出了涵盖住宅、商用和公用事业应用的系列太阳能安装系统,立志成为全方位的太阳能安装解决方案和产品供应商。
“品质价值服务”是我们追求的原则。我们通过创新的产品设计,在太阳能项目中传递安装结构的价值,我们通过在项目规划、设计、交付和调试的整个过程中提供专业的服务,以满足我们的客户。
我们与客户、供应商和其他公司一起,期待建设一个可持续发展的社会和一个更绿色的未来。
