TN-144-450M

Name: TN-144-450M
Brand: TN Solar
SKU: 56417
Price: 0.06607 USD
Availability: InStock

TN Solar Co., Limited

YH450W-460W-30M

浙江盈辉新能源有限公司

每件价格
最低订购量	100+ 件
YH450W-36MH	¥361

联系生产商

注意： 您的询盘将直接发送至浙江盈辉新能源有限公司。

背钝化 (PERC)

440-460 Wp

23.8 kg

12 年

20.85 % - 21.32 %

1909x1134x30 mm

3.2 mm

0.35 %/°C

120

功率范围

445 - 470 Wp

地区

中国大陆

重量

23.5 kg

产品质量保证

15 年

组件效率

20 % - 21.2 %

尺寸

2094x1038x35 mm

玻璃厚度

3.2 mm

温度系数（Pmax）

-0.35 %/°C

电池片数量

144

每件价格每件价格
最低订购量	1 件	2 件	3+ 件
445M-72H	¥207	¥205	¥203

联系生产商

注意： 您的询盘将直接发送至TN Solar Co., Limited。

产品信息
公司档案页

产品特点

类型

单晶硅

产品型号

445M-72H

450M-72H

455M-72H

460M-72H

465M-72H

470M-72H

产品质量保证

15 年

功率偏差

-1 ~ +1 %

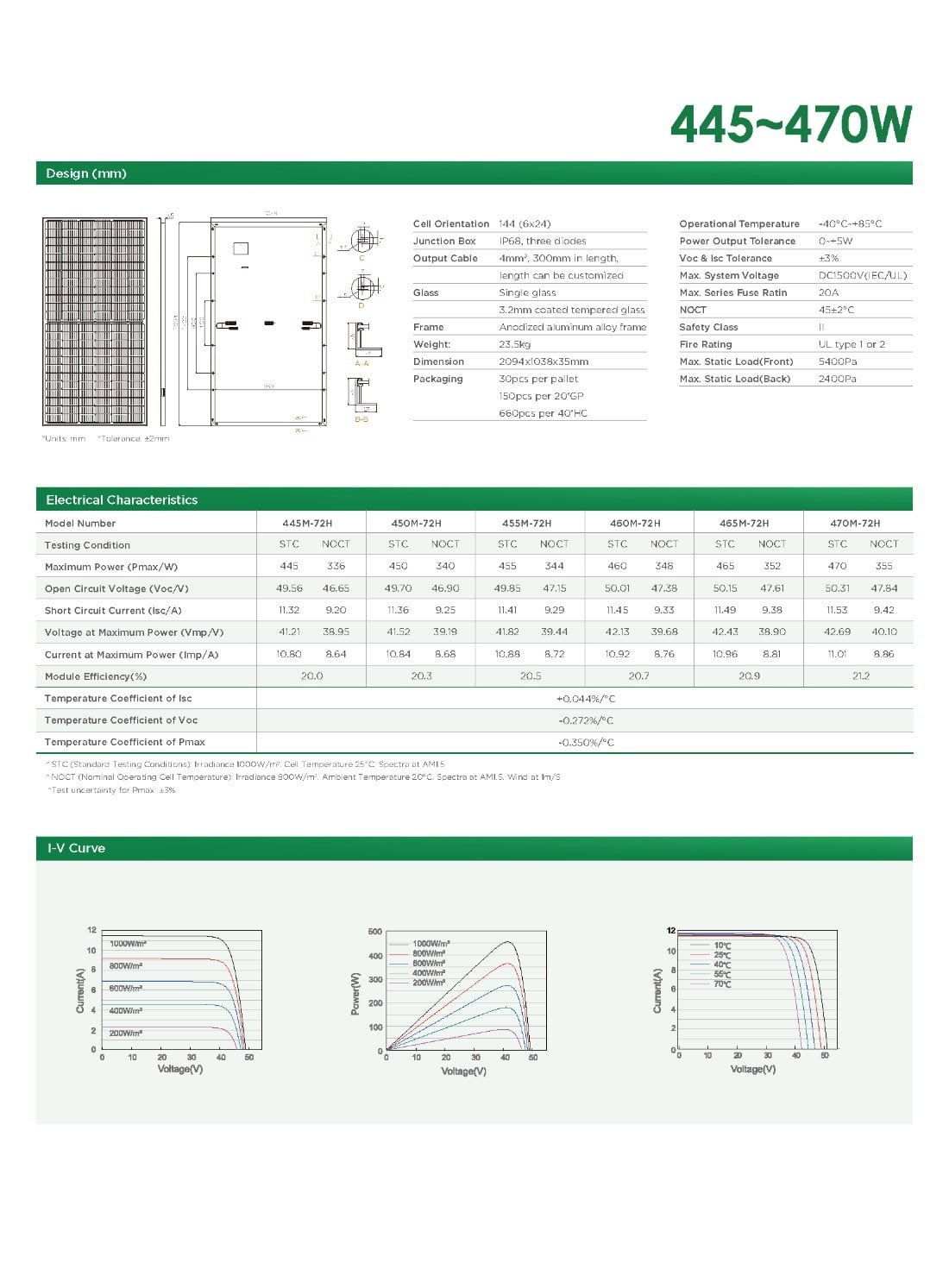

电性能参数（STC）

峰值功率（Pmax）

445 Wp

450 Wp

455 Wp

460 Wp

465 Wp

470 Wp

峰值工作电压（Vmpp）

41.21 V

41.52 V

41.82 V

42.13 V

42.43 V

42.69 V

峰值工作电流（Impp）

10.8 A

10.84 A

10.88 A

10.92 A

10.96 A

11.01 A

开路电压（Voc）

49.56 V

49.7 V

49.85 V

50.01 V

50.15 V

50.31 V

短路电流（Isc）

11.32 A

11.36 A

11.41 A

11.45 A

11.49 A

11.53 A

组件效率

20 %

20.3 %

20.5 %

20.7 %

20.9 %

21.2 %

电性能参数（NOCT）

峰值功率（Pmax）

336 Wp

340 Wp

344 Wp

348 Wp

352 Wp

355 Wp

峰值工作电压（Vmpp）

38.95 V

39.19 V

39.44 V

39.69 V

38.9 V

40.1 V

峰值工作电流（Impp）

8.64 A

8.68 A

8.72 A

8.76 A

8.81 A

8.86 A

开路电压（Voc）

46.65 V

46.9 V

47.15 V

47.38 V

47.61 V

47.84 V

短路电流（Isc）

9.2 A

9.25 A

9.29 A

9.33 A

9.38 A

9.42 A

最大耐久温度

45±2 °C

工作温度

-40 - 85 °C

温度系数（Pmax）

-0.35 %/°C

温度系数（Voc）

-0.272 %/°C

温度系数（Isc）

0.044 %/°C

最大系统电压

1500 V

保险丝额定电流

20 A

组件尺寸（高/宽/厚）

2094x1038x35 mm

重量

23.5 kg

电池片规格

166×166 mm

电池片数量

144

玻璃类型

钢化

玻璃厚度

3.2 mm

边框类型

阳极氧化铝

旁路二极管数

接线盒防护等级

IP 68

连接器类型

MC4

电缆长度

300 mm

Product Details

About Us

TN solar is an enterprise specializing in the integrated photovoltaic products manufacturing of silicon ingot, silicon wafer, solar cell and PV module, founded in 2006, our company covers an area of more than 100 thousand square meters our company has passed the evaluation of iso9000 quality control system and has attained CE and TUV certificates .

Based in the port. The leading time is 15 days to major Australian ports. Have supply for Australia, and European market.etc

Production: 5 lines for solar cell, 250,000 pcs cells/day. The capacity for 2013 is 600MW.The production line includes the size of solar cell 156*156mm, 125*125mm, both mono and poly. 5 lines for solar panel, one 40 ft containers/day.

Certificates- IEC61215&IEC61730 for 85W-600W

CEC fire rating :(See attached )

We are specializing in making 350w -450w Mono Silver Series & Black Series and 20w-200w Smaller size panels Silver Series & Black Series

Warranty ------for product warranty, free from defects in material & workmanship:15 years

------for power performance of more than 90% of minimal power: 12years

------for power performance of more than 80% of minimal power: 25 years

Production Line

Main Products

Customize all kinds of solar modules

Suppy solar cells

Solar systems and components

Solar Battery, Cables, MC4, Mounting Kits

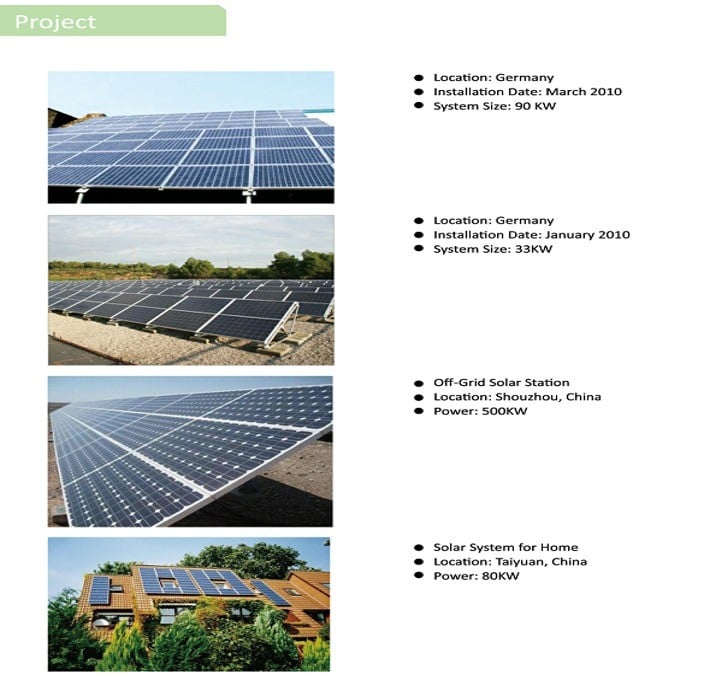

Projects

Exported Globally

TN Solar Co., Limited

: Click to show company phone
: https://www.ts-solar-group.com
: 中国大陆
: Wenya Road, Qianhuang Town, Wujin District, Changzhou, Jiangsu

员工数： 300

联系生产商

注意： 您的询盘将直接发送至TN Solar Co., Limited。

晶体硅

产量 (MW)/： MWp

单晶硅，多晶硅

功率范围(Wp)： 100-730

有用联系人

Dominic

Eric

公司描述

TN Solar is an enterprise specialising in integrated photovoltaic products, including solar panels and solar cells.

We specialise in manufacturing small panels ranging from 20 to 200W.

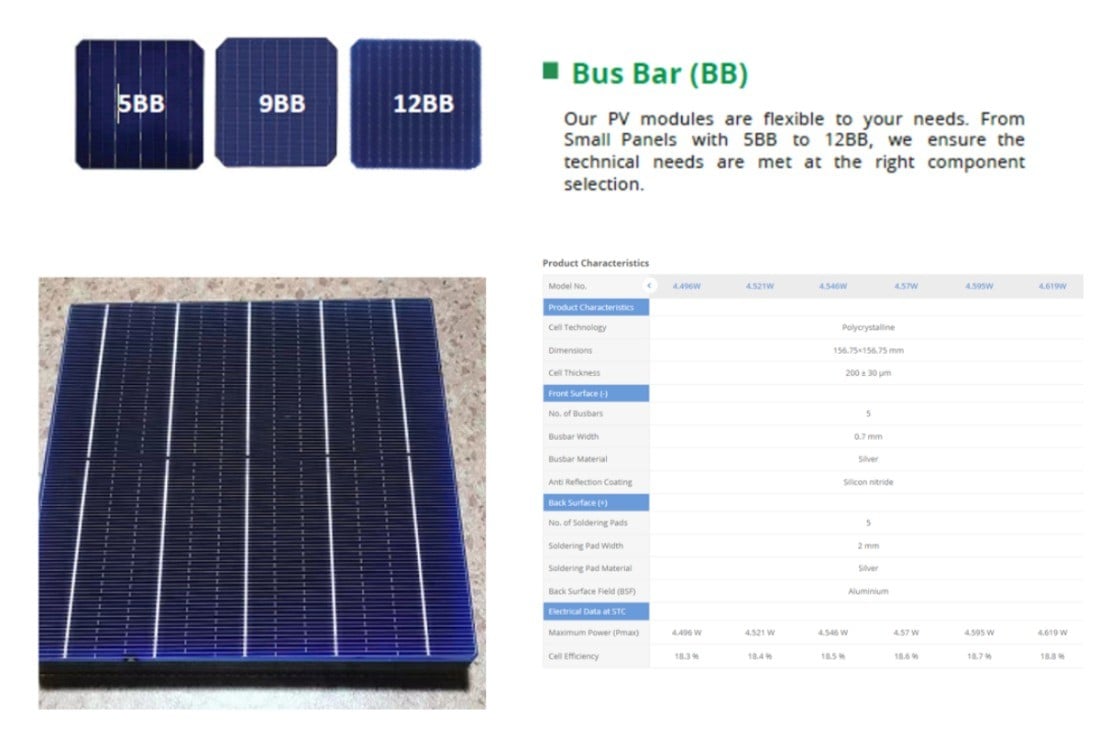

Our core products include PERC, TOPCON, HJT, and basic 400W-755W, the world's most affordable, A-grade high-efficiency solar cells with up to 20BB.

We also provide a comprehensive warranty and after-sales service to guarantee our customers are completely satisfied with their purchase.

We are also committed to delivering swift service, outstanding customer support, and quality assurance. We highly value our customers and offer them unbeatable service and prices.

Our Capacity is:
