TN-270-280Р 5BB Cells

TN Solar Co., Limited
  1. 光伏组件产品名录
  2. TN-270-280Р 5BB Cells
Ad
GKA144N 600-620W Pro
南通冠科新能源有限公司
每件价格
最低订购量 108-324 件 325-719 件
交货时间 5 days 10 days
GKA144N 600-620W Pro ¥307 ¥303
GKA144N 600-620W Pro
联系生产商
注意： 您的询盘将直接发送至南通冠科新能源有限公司。
技术
双面, TOPCon, 异质结 (HJT), N型
功率范围
620-620 Wp
重量
31 kg
产品质量保证
30 年
组件效率
24.38 % - 24.38 %
组件尺寸
2279x1134x30 mm
玻璃厚度
3.2 mm
电池片数量
144
功率范围
功率范围
270 - 280 Wp
地区
地区
中国大陆 中国大陆
重量
重量
18 kg
功率输出保证
功率输出保证
80 % 25年年限质保
组件效率
组件效率
16.6 % - 17.3 %
组件尺寸
尺寸
1640x992x35 mm
温度系数（Pmax）
温度系数（Pmax）
-0.41 %/°C
电池片数量
电池片数量
60
联系生产商
注意： 您的询盘将直接发送至TN Solar Co., Limited。

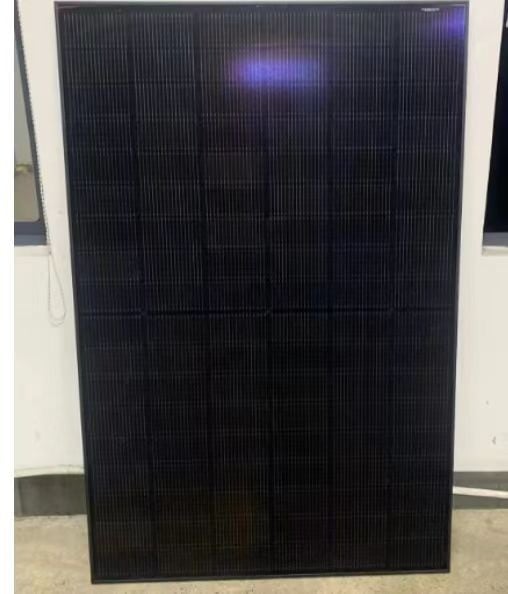

Solar PV Modules with advanced 5BB solar cells provide high-output performance even at low insolation and low NOCT level. The unique manufacturing process ensures unparalleled quality control for every component of the module. With its low unit cost and long service life this solar panel is a perfect solution for a project of any size.

产品特点

类型 多晶硅
产品型号
270 275 280

功率输出保证 80 % 25年年限质保
0.8 %
功率偏差 0 ~ +3 %
电性能参数（STC）
峰值功率 （Pmax）
270 Wp 275 Wp 280 Wp
峰值工作电压（Vmpp）
31.2 V 31.4 V 31.6 V
峰值工作电流（Impp）
8.65 A 8.76 A 8.86 A
开路电压（Voc）
37.2 V 38 V 38.5 V
短路电流（Isc）
9.06 A 9.18 A 9.29 A
组件效率
16.6 % 16.9 % 17.3 %
电性能参数（NOCT）
最大耐久温度 45±2 °C

工作温度 -40 - 85 °C
温度系数（Pmax） -0.41 %/°C
温度系数（Voc） -0.33 %/°C
温度系数（Isc） 0.06 %/°C

最大系统电压 1000 V
保险丝额定电流 15 A

组件尺寸（高/宽/厚） 1640x992x35 mm
重量 18 kg
电池片数量 60
玻璃类型 防反射镀膜，钢化
边框类型 阳极氧化铝
接线盒防护等级 IP 67
连接器类型 MC4
电缆截面 4 mm2
电缆长度 900 mm

Product Details

About Us

TN solar is an enterprise specializing in the integrated photovoltaic products manufacturing of silicon ingot, silicon wafer, solar cell and PV module, founded in 2006, our company covers an area of more than 100 thousand square meters our company has passed the evaluation of iso9000 quality control system and has attained CE and TUV certificates .

Based in the port. The leading time is 15 days to major Australian ports. Have supply for Australia, and European market.etc

Production: 5 lines for solar cell, 250,000 pcs cells/day. The capacity for 2013 is 600MW.The production line includes the size of solar cell 156*156mm, 125*125mm, both mono and poly. 5 lines for solar panel, one 40 ft containers/day.

Certificates- IEC61215&IEC61730 for 85W-600W

CEC fire rating :(See attached )

We are specializing in making 350w -450w Mono Silver Series & Black Series and 20w-200w Smaller size panels Silver Series & Black Series

Warranty ------for product warranty, free from defects in material & workmanship:15 years

------for power performance of more than 90% of minimal power: 12years

------for power performance of more than 80% of minimal power: 25 years

Our Factory

Production Line

Main Products

  • Customize all kinds of solar modules

  • Suppy solar cells

  • Solar systems and components

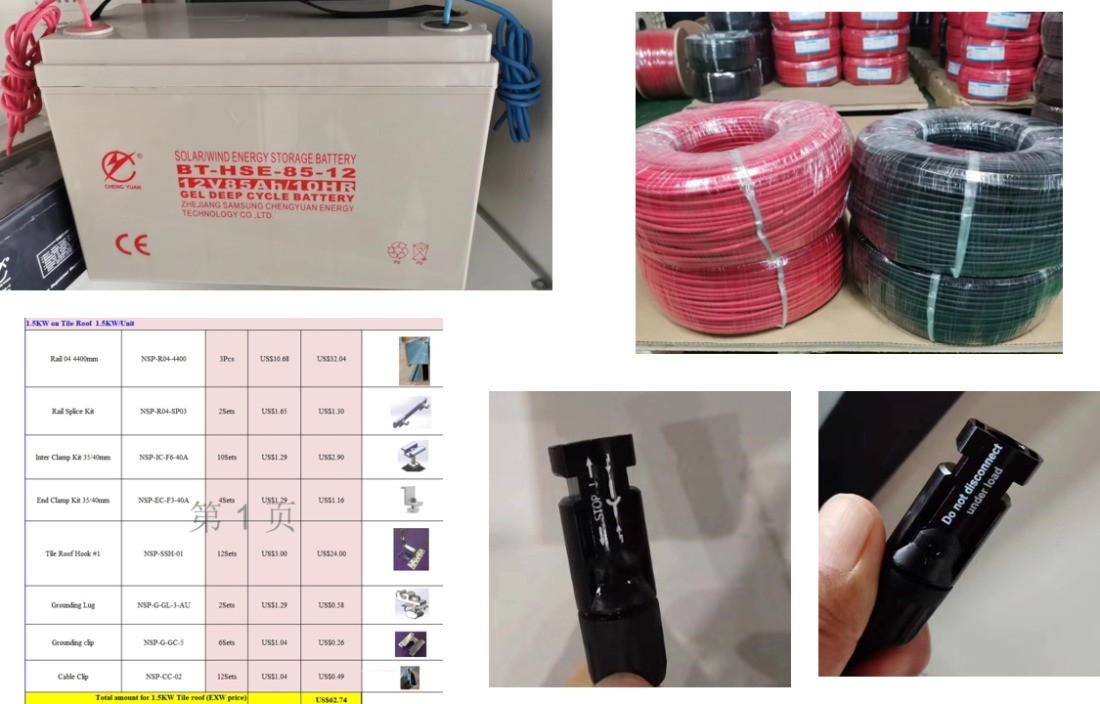

  • Solar Battery, Cables, MC4, Mounting Kits
