TN-Mono 380-400W

TN Solar Co., Limited

每件价格
最低订购量	1-961 件	962+ 件
SKT430M10-108D4	¥365	¥347

注意： 您的询盘将直接发送至无锡萨科特新能源科技有限公司。

双面, N型

410-430 Wp

21 kg

87.4 % 30年年限质保

21 % - 22 %

1722x1134x30 mm

1.6 mm

0.290 %/°C

背钝化 (PERC)

380 - 400 Wp

22.9 kg

产品质量保证

功率输出保证

91.5 % 10年年限质保，83.2 % 25年年限质保

19.15 % - 20.16 %

1980x1002x35 mm

3.2 mm

温度系数（Pmax）

-0.396 %/°C

电池片数量

每件价格每件价格
最低订购量	1 件	2 件	3+ 件
380	¥207	¥205	¥203

联系生产商

注意： 您的询盘将直接发送至TN Solar Co., Limited。

PERC Cells Technology

Lower LCOE and BOS

Anti PID/ Low LID protection

Less Hot Spot Shading effects

Lower temperature coefficient

产品信息
公司档案页

产品特点

类型

单晶硅

产品型号

380

385

0395

400

产品质量保证

12 年

功率输出保证

91.5 % 10年年限质保，83.2 % 25年年限质保

0.67 %

功率偏差

0 ~ +1 %

电性能参数（STC）

峰值功率（Pmax）

380 Wp

385 Wp

390 Wp

395 Wp

400 Wp

峰值工作电压（Vmpp）

39.5 V

39.65 V

39.76 V

39.86 V

39.92 V

峰值工作电流（Impp）

9.62 A

9.71 A

9.81 A

9.91 A

10.02 A

开路电压（Voc）

48.2 V

48.25 V

48.37 V

48.48 V

48.6 V

短路电流（Isc）

9.99 A

10.08 A

10.18 A

10.28 A

10.4 A

组件效率

19.15 %

19.41 %

19.66 %

19.91 %

20.16 %

电性能参数（NOCT）

峰值功率（Pmax）

283.34 Wp

287.07 Wp

290.79 Wp

294.52 Wp

298.25 Wp

峰值工作电压（Vmpp）

37.03 V

37.17 V

37.27 V

37.37 V

37.42 V

峰值工作电流（Impp）

7.64 A

7.71 A

7.79 A

7.87 A

7.96 A

开路电压（Voc）

44.7 V

44.74 V

44.86 V

44.96 V

45.07 V

短路电流（Isc）

8.12 A

8.19 A

8.28 A

8.36 A

8.45 A

最大耐久温度

45±2 °C

工作温度

-40 - 85 °C

温度系数（Pmax）

-0.396 %/°C

温度系数（Voc）

-0.31 %/°C

温度系数（Isc）

0.06 %/°C

最大系统电压

1500 V

保险丝额定电流

25 A

组件尺寸（高/宽/厚）

1980x1002x35 mm

重量

22.9 kg

电池片规格

158.75×158.75 mm

电池片数量

玻璃类型

防反射镀膜，钢化

玻璃厚度

3.2 mm

边框类型

阳极氧化铝

旁路二极管数

接线盒防护等级

IP 68

连接器类型

MC4

电缆截面

4 mm²

电缆长度

900 mm

Product Details

About Us

TN solar is an enterprise specializing in the integrated photovoltaic products manufacturing of silicon ingot, silicon wafer, solar cell and PV module, founded in 2006, our company covers an area of more than 100 thousand square meters our company has passed the evaluation of iso9000 quality control system and has attained CE and TUV certificates .

Based in the port. The leading time is 15 days to major Australian ports. Have supply for Australia, and European market.etc

Production: 5 lines for solar cell, 250,000 pcs cells/day. The capacity for 2013 is 600MW.The production line includes the size of solar cell 156*156mm, 125*125mm, both mono and poly. 5 lines for solar panel, one 40 ft containers/day.

Certificates- IEC61215&IEC61730 for 85W-600W

CEC fire rating :(See attached )

We are specializing in making 350w -450w Mono Silver Series & Black Series and 20w-200w Smaller size panels Silver Series & Black Series

Warranty ------for product warranty, free from defects in material & workmanship:15 years

------for power performance of more than 90% of minimal power: 12years

------for power performance of more than 80% of minimal power: 25 years

Our Factory

Production Line

Main Products

Customize all kinds of solar modules

Suppy solar cells

Solar systems and components

Solar Battery, Cables, MC4, Mounting Kits

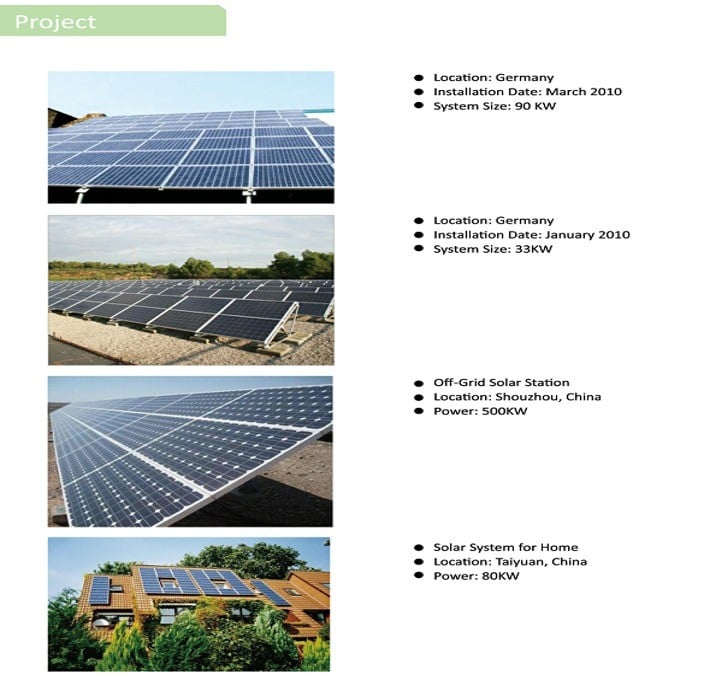

Projects

Exported Globally

TN Solar Co., Limited

: Click to show company phone
: https://www.ts-solar-group.com
: 中国大陆
: Wenya Road, Qianhuang Town, Wujin District, Changzhou, Jiangsu

员工数： 300

联系生产商

注意： 您的询盘将直接发送至TN Solar Co., Limited。

晶体硅

产量 (MW)/： MWp

单晶硅，多晶硅

功率范围(Wp)： 100-730

有用联系人

Dominic

Eric

公司描述

TN Solar is an enterprise specialising in integrated photovoltaic products, including solar panels and solar cells.

We specialise in manufacturing small panels ranging from 20 to 200W.

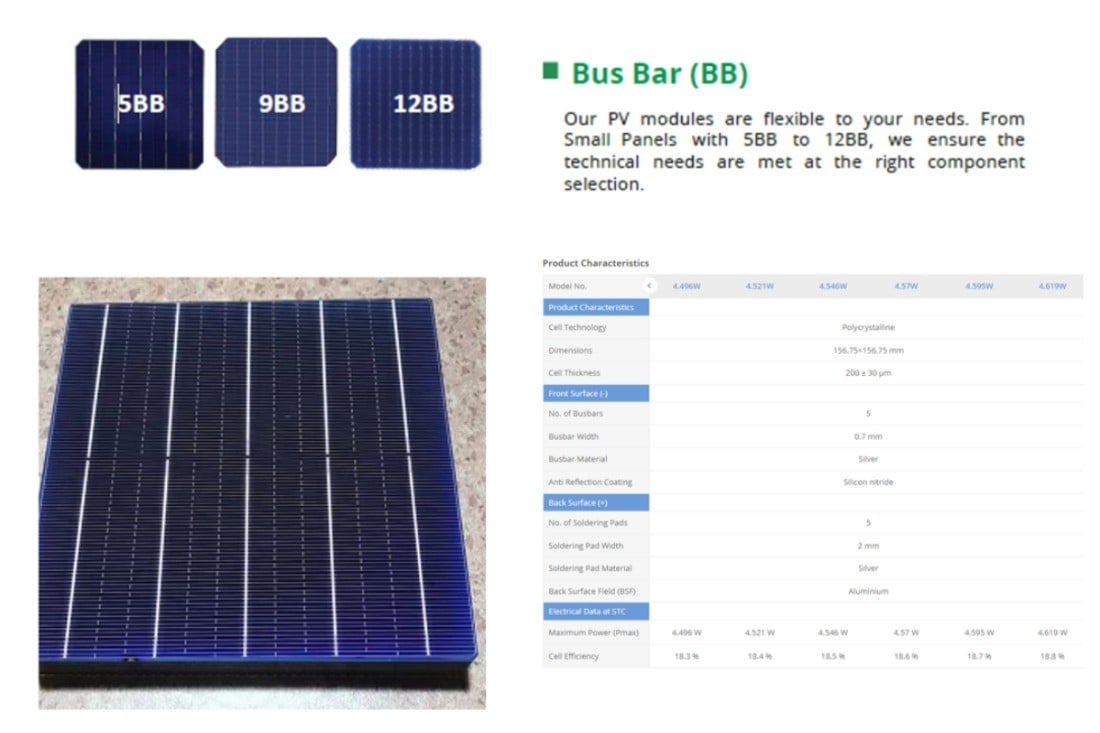

Our core products include PERC, TOPCON, HJT, and basic 400W-755W, the world's most affordable, A-grade high-efficiency solar cells with up to 20BB.

We also provide a comprehensive warranty and after-sales service to guarantee our customers are completely satisfied with their purchase.

We are also committed to delivering swift service, outstanding customer support, and quality assurance. We highly value our customers and offer them unbeatable service and prices.

Our Capacity is:
