技术
技术
背钝化 (PERC)
功率范围
功率范围
525 - 550 Wp
地区
地区
中国大陆 中国大陆
重量
重量
28.6 kg
产品质量保证
产品质量保证
25 年
功率输出保证
功率输出保证
87.7 % 15年年限质保，80.7 % 25年年限质保
组件效率
组件效率
20.3 % - 21.3 %
组件尺寸
尺寸
2279x1134x35 mm
玻璃厚度
玻璃厚度
3.2 mm
温度系数（Pmax）
温度系数（Pmax）
-0.35 %/°C
电池片数量
电池片数量
144
联系生产商
注意： 您的询盘将直接发送至TN Solar Co., Limited。

Positive power tolerance (0 +5W) guaranteed

High module conversion efficiency (up to 21.3%)

Slower power degradation enabled by Low LID Mono PERC technology: first year <2%, 0.55% year 2-25

Solid PID resistance ensured by solar cell process optimization and careful module BOM selection

Reduced resistive loss with lower operating current

产品特点

类型 单晶硅
产品型号
525M-72H 530M-72H 535M-72H 540M-72H 545M-72H 550M-72H

产品质量保证 25 年
功率输出保证 87.7 % 15年年限质保，80.7 % 25年年限质保
0.77 %
功率偏差 -3 ~ +1 %
电性能参数（STC）
峰值功率 （Pmax）
525 Wp 530 Wp 535 Wp 540 Wp 545 Wp 550 Wp
峰值工作电压（Vmpp）
41.15 V 41.31 V 41.47 V 41.64 V 41.8 V 41.96 V
峰值工作电流（Impp）
12.76 A 12.83 A 12.9 A 12.97 A 13.04 A 13.11 A
开路电压（Voc）
49.15 V 49.3 V 49.45 V 49.6 V 49.75 V 49.9 V
短路电流（Isc）
13.65 A 13.72 A 13.79 A 13.86 A 13.93 A 14 A
组件效率
20.3 % 20.5 % 20.7 % 20.9 % 21.1 % 21.3 %
电性能参数（NOCT）
峰值功率 （Pmax）
397 Wp 401 Wp 405 Wp 408 Wp 412 Wp 416 Wp
峰值工作电压（Vmpp）
38.36 V 38.57 V 38.78 V 38.99 V 39.2 V 39.43 V
峰值工作电流（Impp）
10.35 A 10.39 A 10.43 A 10.47 A 10.51 A 10.55 A
开路电压（Voc）
46.05 V 46.18 V 46.31 V 46.43 V 46.55 V 46.68 V
短路电流（Isc）
10.97 A 11.01 A 11.05 A 11.09 A 11.13 A 11.17 A
最大耐久温度 45±2 °C

工作温度 -40 - 85 °C
温度系数（Pmax） -0.35 %/°C
温度系数（Voc） -0.275 %/°C
温度系数（Isc） 0.045 %/°C

最大系统电压 1500 V
保险丝额定电流 25 A

组件尺寸（高/宽/厚） 2279x1134x35 mm
重量 28.6 kg
电池片规格 182×182 mm
电池片数量 144
玻璃类型 钢化
玻璃厚度 3.2 mm
边框类型 阳极氧化铝
旁路二极管数 3
接线盒防护等级 IP 68
电缆截面 4 mm2
电缆长度 300 mm

Product Details

About Us

TN solar is an enterprise specializing in the integrated photovoltaic products manufacturing of silicon ingot, silicon wafer, solar cell and PV module, founded in 2006, our company covers an area of more than 100 thousand square meters our company has passed the evaluation of iso9000 quality control system and has attained CE and TUV certificates .

Based in the port. The leading time is 15 days to major Australian ports. Have supply for Australia, and European market.etc

Production: 5 lines for solar cell, 250,000 pcs cells/day. The capacity for 2013 is 600MW.The production line includes the size of solar cell 156*156mm, 125*125mm, both mono and poly. 5 lines for solar panel, one 40 ft containers/day.

Certificates- IEC61215&IEC61730 for 85W-600W

CEC fire rating :(See attached )

We are specializing in making 350w -450w Mono Silver Series & Black Series and 20w-200w Smaller size panels Silver Series & Black Series

Warranty ------for product warranty, free from defects in material & workmanship:15 years

------for power performance of more than 90% of minimal power: 12years

------for power performance of more than 80% of minimal power: 25 years

Our Factory

Production Line

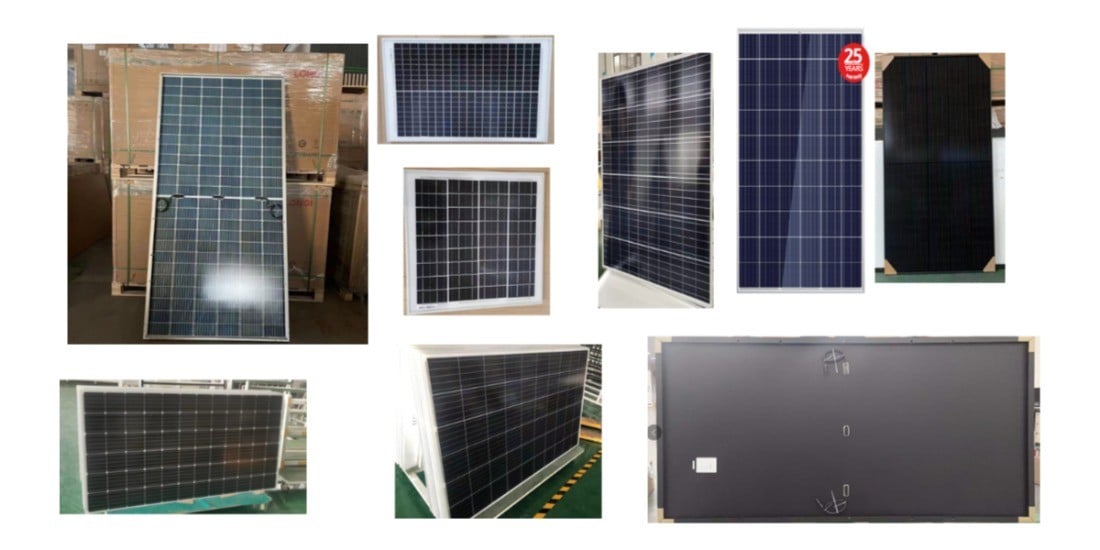

Main Products
