每件价格
每件价格
|
||
| 最低订购量 | 10-599 件 | 600+ 件 |
| Pi LV1 | ¥9,330 | ¥6,840 |
| 产品型号 |
|
|
|---|---|---|
| 价格( kWh) |
|
|
| 价格( 台) |
|
|
| 产品质量保证 (最低) | 10 年 | |
| 配置 | 堆叠式 | |
| 储能系统技术 | LFP(磷酸锂铁) | |
| 部件 | 电池管理系统 | |
| 安装方式 | 地板 | |
| 最大并行单元数 | 24 | |
| 标称电压 |
|
|
| 工作电压范围 | 47.5 - 56.8 V | |
| 标称容量 |
|
|
| 标称能量 |
|
|
| 标称放电电流 |
|
|
| 标称充电电流 |
|
|
| 最大放电电流 |
|
|
| 最大充电电流 |
|
|
| 设计寿命 |
|
|
| 循环寿命 | 6000@90%DOD | |
| 充电温度 | -0 ~ +45 ℃ | |
| 放电温度 | -10 ~ +50 ℃ | |
| 储存温度 | -20 ~ +50 ℃ | |
| 尺寸(长*宽*高) |
|
|
| 重量 |
|
|
| IP 等级 | IP55 | |
| 冷却方式 | 自然冷却 | |
| 通信 | CAN, RS485, WiFi | |
| 监控 | 应用程序 | |
| 下载公司产品详情 | ||
Product Description

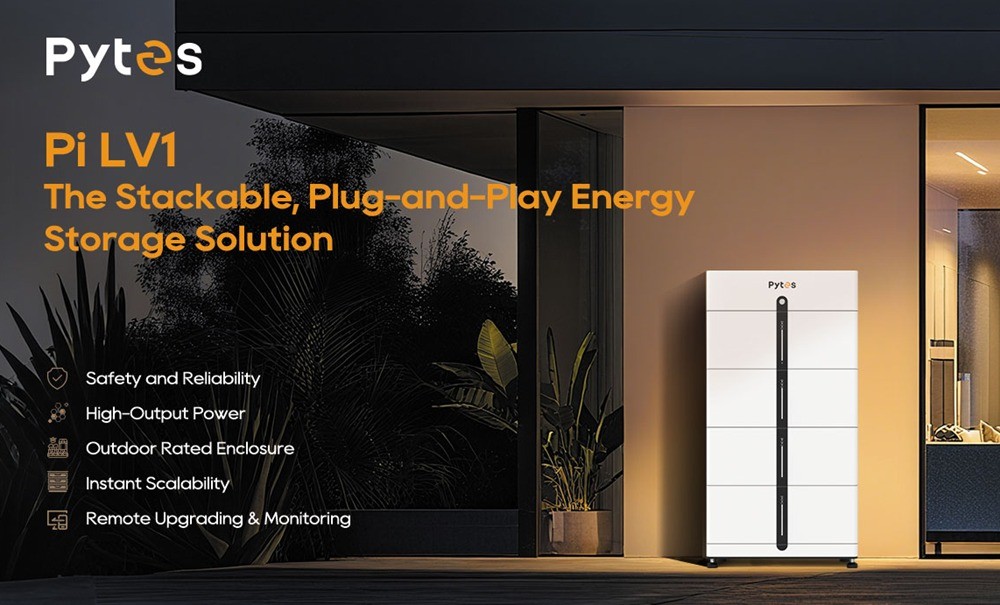

PYTES Pi LV1 Stackable lithium energy storage system is all about simplicity and efficiency. Its compact design makes installation a breeze, even in tight spaces. No need to stress about where to fit it.Pi LV1 system procides flexible configurations with the ability to expand capacity up to a whopping 245.76kWh.Pi LV1 uses IP55 Rated materials suitable for indoor & outdoor installation.Our self-developed BMS put through a rigorous testing process, guarantees accuracy and stability like never before.
Key Features
Safe: DC breaker and fuse integrated
Smart: Remote upgrading & monitoring

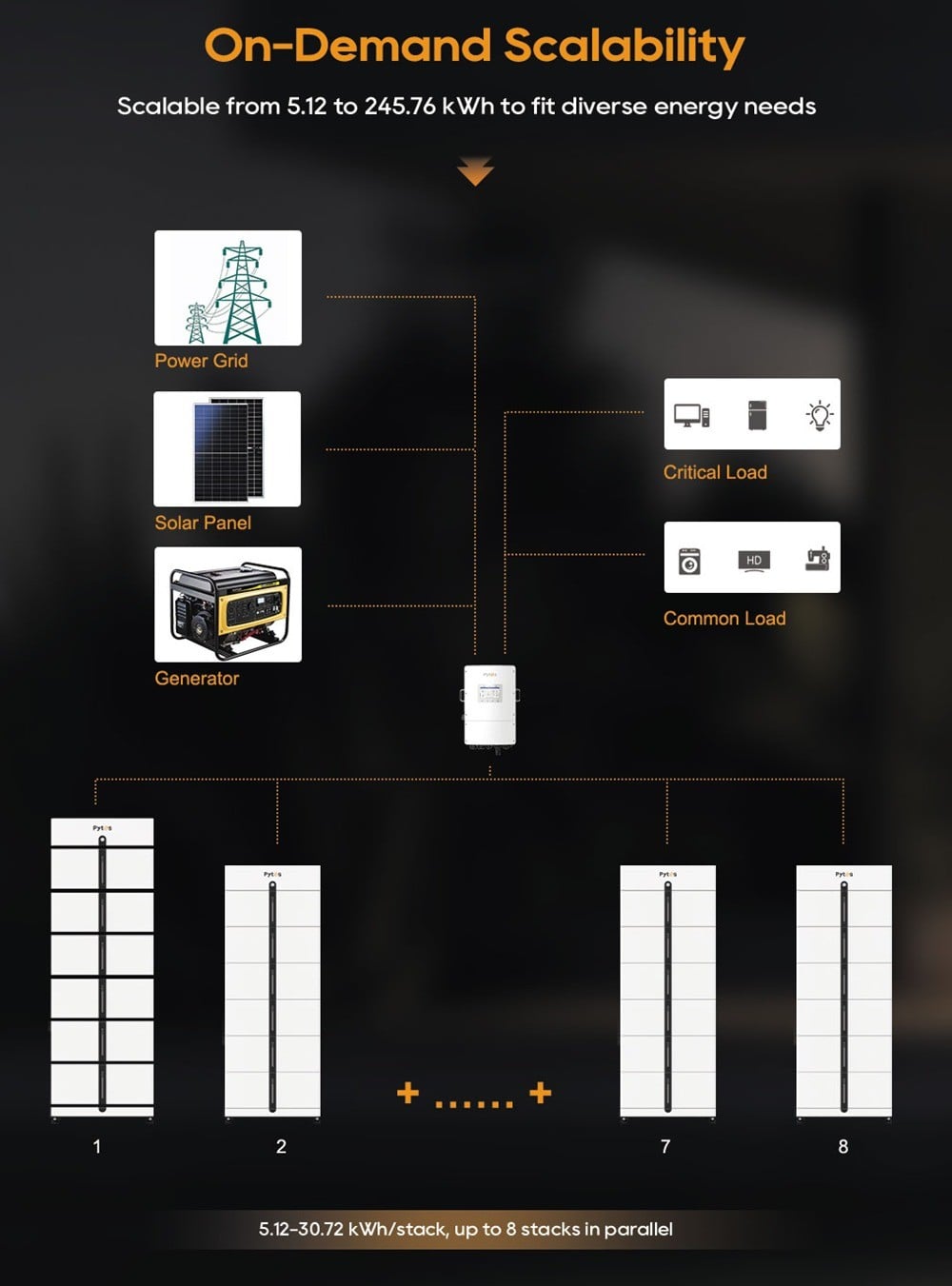

Powerful: Scalable to 245.76 kWh (6 modules per stack,max 8 stacks in parallel),up to 10.24kW output power
Reliable: Heating pad integrated for wider operation temperature(Optional)
Compact: Modular design, easy installation, save labor costs
Elegant: Modernized design, IP55 rated suitable for indoor & outdoor installation
