GSN7S54T-420-440BB N-Type CleanEdge Single Glas...

G-STAR Pte. Ltd.
技术
技术
TOPCon, N型
功率范围
功率范围
420 - 440 Wp
地区
地区
新加坡 新加坡
重量
重量
22 kg
产品质量保证
产品质量保证
25 年
功率输出保证
功率输出保证
99 % 1年年限质保,87.4 % 30年年限质保
组件效率
组件效率
21.51 % - 22.53 %
组件尺寸
尺寸
1722x1134x32 mm
玻璃厚度
玻璃厚度
3.2 mm
温度系数(Pmax)
温度系数(Pmax)
-0.3 %/°C
电池片数量
电池片数量
108
价 格:
起价
¥1.70 / Wp*
*
每件价格
每件价格
最低订购量 1+
GSN7S54T-435BB ¥738
联系生产商
注意: 您的询盘将直接发送至G-STAR Pte. Ltd.
  • Clean Edge design prevents water and dust buildup, boosting energy yield by 6-15%

  • Advanced N-type TOPCon technology

  • All-black design for a harmonious and aesthetically pleasing look

  • High wear resistance and waterproof, suitable for humid, windy, and dusty environments

  • Excellent Anti-PID performance

产品特点

类型 单晶硅
产品型号
GSN7S54T-420BB GSN7S54T-425BB GSN7S54T-430BB GSN7S54T-435BB GSN7S54T-440BB

产品质量保证 25 年
功率输出保证 99 % 1年年限质保,87.4 % 30年年限质保
0.42 %
功率偏差 0 ~ +3 %
电性能参数(STC)
峰值功率 (Pmax)
420 Wp 425 Wp 430 Wp 435 Wp 440 Wp
峰值工作电压(Vmpp)
31.51 V 31.7 V 31.88 V 32.06 V 32.24 V
峰值工作电流(Impp)
13.33 A 13.41 A 13.49 A 13.57 A 13.65 A
开路电压(Voc)
38.11 V 38.3 V 38.49 V 38.68 V 38.87 V
短路电流(Isc)
14.07 A 14.15 A 14.23 A 14.31 A 14.39 A
组件效率
21.51 % 21.76 % 22.02 % 22.28 % 22.53 %
电性能参数(NOCT)
峰值功率 (Pmax)
318 Wp 322 Wp 326 Wp 330 Wp 334 Wp
峰值工作电压(Vmpp)
30.97 V 31.15 V 31.33 V 31.51 V 31.69 V
峰值工作电流(Impp)
10.27 A 10.35 A 10.41 A 10.48 A 10.54 A
开路电压(Voc)
37.84 V 38.02 V 38.2 V 38.38 V 38.56 V
短路电流(Isc)
10.8 A 10.88 A 10.94 A 11.01 A 11.07 A
最大耐久温度 43±2 °C

工作温度 -40 - 85 °C
温度系数(Pmax) -0.3 %/°C
温度系数(Voc) -0.25 %/°C
温度系数(Isc) 0.046 %/°C

最大系统电压 1500 V
保险丝额定电流 30 A

组件尺寸(高/宽/厚) 1722x1134x32 mm
重量 22 kg
电池片规格 182×91 mm
电池片数量 108
玻璃类型 防反射镀膜
玻璃厚度 3.2 mm
边框类型 阳极氧化铝,黑色
旁路二极管数 3
接线盒防护等级 IP 68
连接器类型 MC4
电缆长度 300 mm

下载公司产品详情
GSN7S54T Series - N-Type CleanEdge 420-440W Single Glass Module

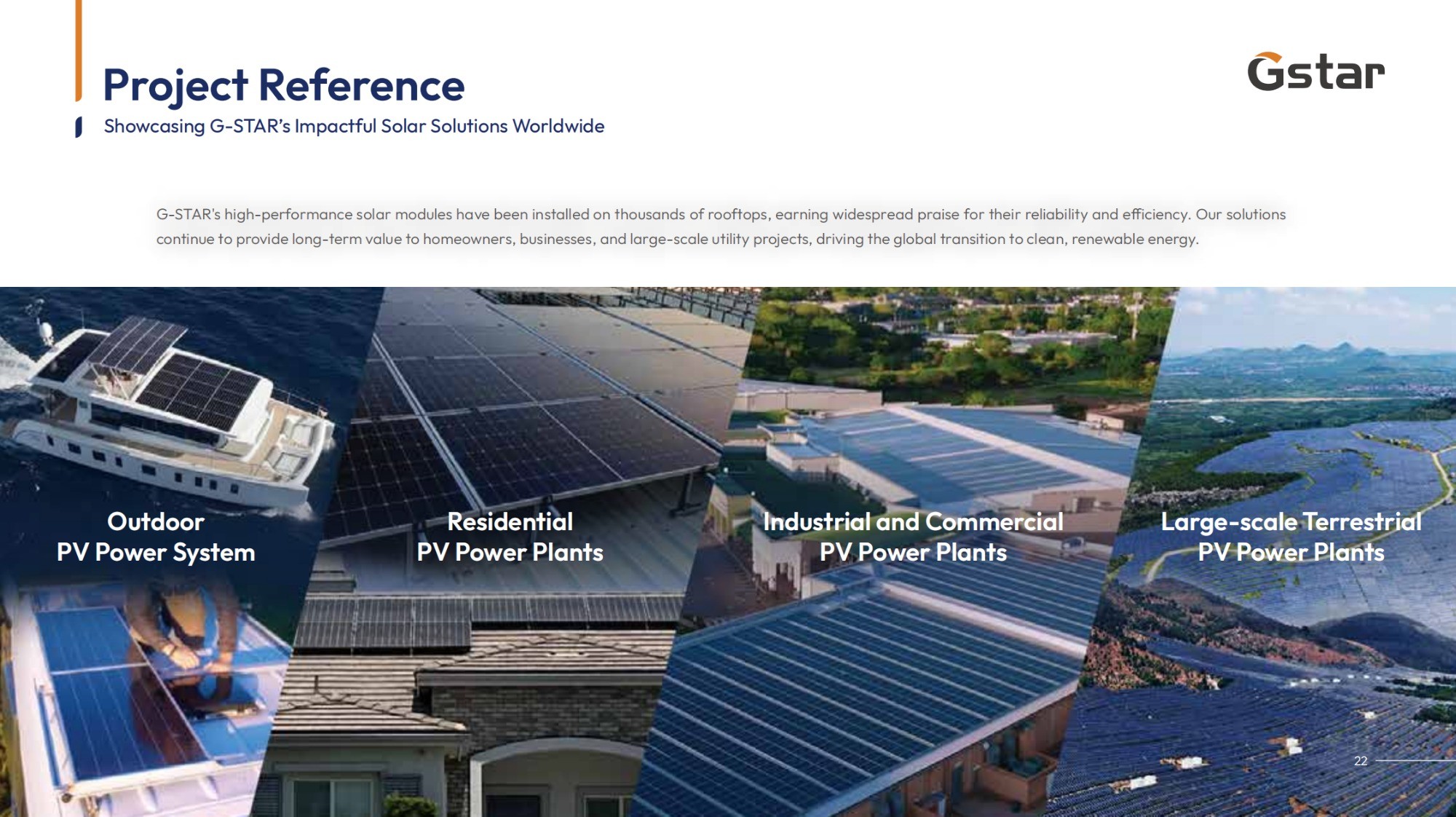

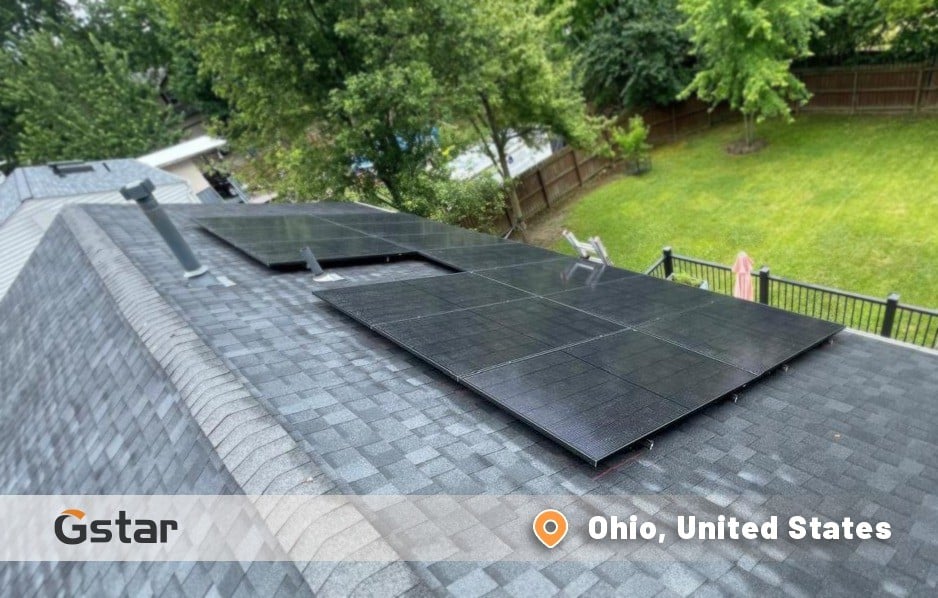

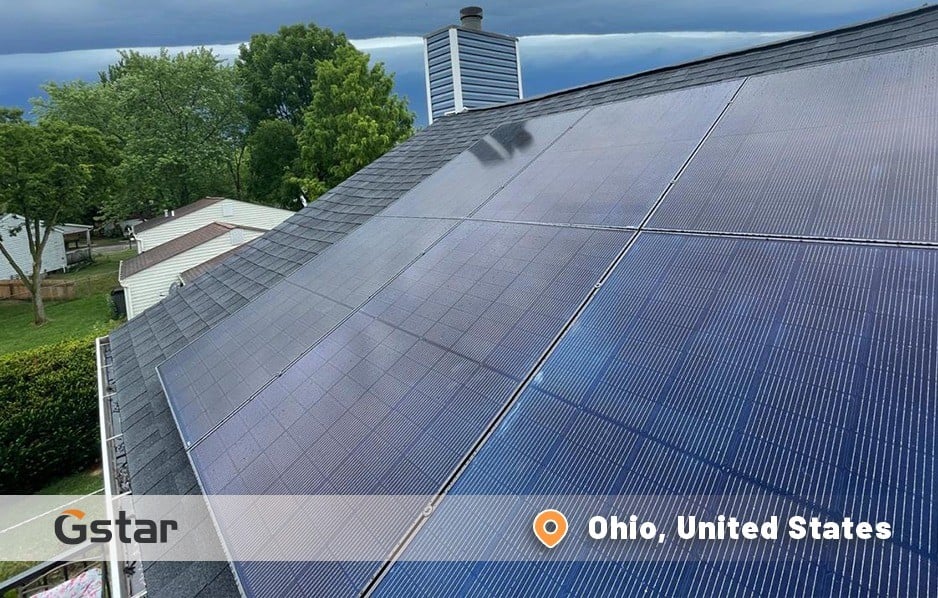

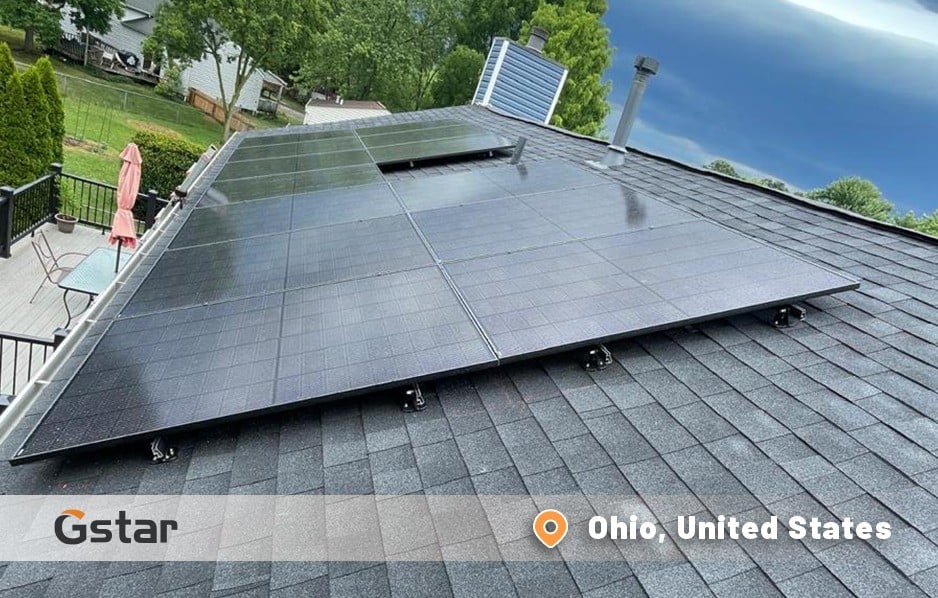

Projects
Exhibition

G-STAR Pte. Ltd.

Click to show company phone
https://www.gstarsolar.com
新加坡
60 Paya Lebar Road #06-12 Paya Lebar Square Singapore 409051
母公司: Standard Energy
注意: 您的询盘将直接发送至G-STAR Pte. Ltd.

晶体硅

产量 (MW)/: MWp
单晶硅
功 率 范 围(Wp): 360-740
公司描述

G-STAR, founded in 2019 and headquartered in Singapore, is committed to being a trusted global provider of clean energy solutions. With a focus on both PV material manufacturing and PV system services, G-STAR aims to develop sustainable clean energy ecosystems worldwide.

G-STAR maintains a global strategy with a "1+N" model, one headquarters in Singapore, with N bases covering the United States, China, India, Mexico, Thailand, Indonesia, Laos, the Philippines, and Egypt. By 2025, G-STAR's integrated production capacity in Southeast Asia is expected to reach 3GW, and the total capacity is 17.5GW.

G-STAR's PV material manufacturing business primarily focuses on the production and processing of silicon materials, including silicon pulling and N-type silicon wafers, as well as metal materials production, including frames and mounting systems. The PV system services encompass the manufacturing of solar modules using N-type technology, providing a comprehensive range of PV products, from R&D to production and sales, catering to global markets including North America, Europe, the Asia-Pacific region, and Africa.

By integrating the PV supply chain to shape an integrated solar future, G-STAR is dedicated to pioneering a sustainable energy landscape that harnesses the full potential of solar power, fostering a brighter, cleaner, and more interconnected world.

产品视频
产品

About Us

Gstar Solar is a cutting-edge high-tech enterprise that operates across the entire value chain of the solar panel industry, from producing silicon ingots and wafers to manufacturing solar cells, frames, and modules. Our expertise spans research, production, sales, and engineering technical services. Since our inception, we have adhered to a steadfast commitment to pursuing excellent quality and building a reliable brand in the photovoltaic (PV) industry. Our products undergo rigorous inspections by authoritative bodies and have garnered international recognition from entities such as ETL, TUV, and the California CEC.

At the forefront of the industry, G-STAR has implemented state-of-the-art, fully automatic component production lines and equipment. Our production technology and equipment conditions set industry standards. Our product module range encompasses varieties from 360W to 740W, including PERC, TOPCon, HJT, monofacial, bifacial, and full-black options. Widely applicable, our solar modules find use in diverse settings such as household roofs, commercial roofs, large ground power stations, and government projects. G-STAR is progressively gaining increased brand awareness in the solar photovoltaic industry.

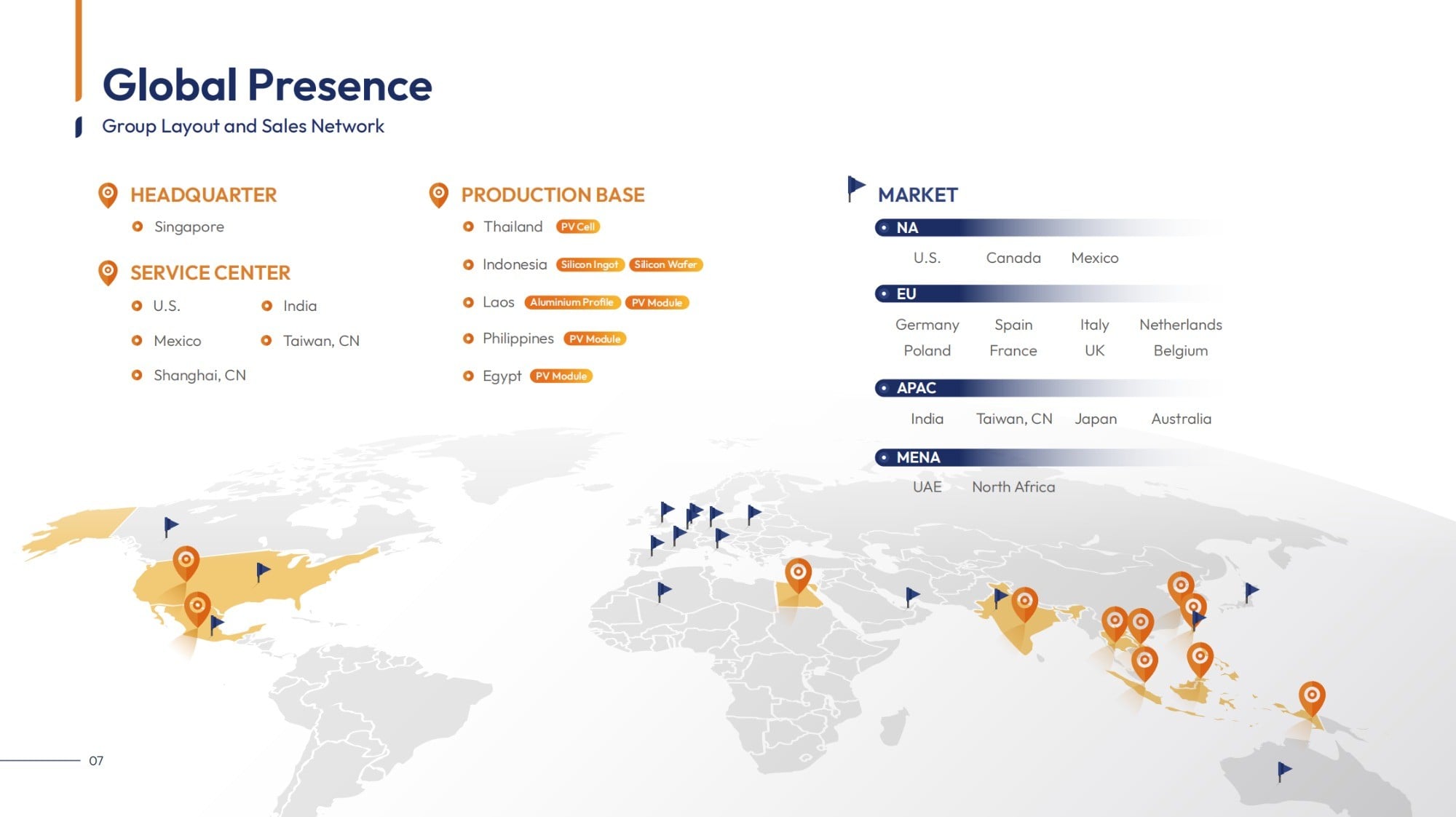

Global Presence
Our Products
Our Factory
Certifications

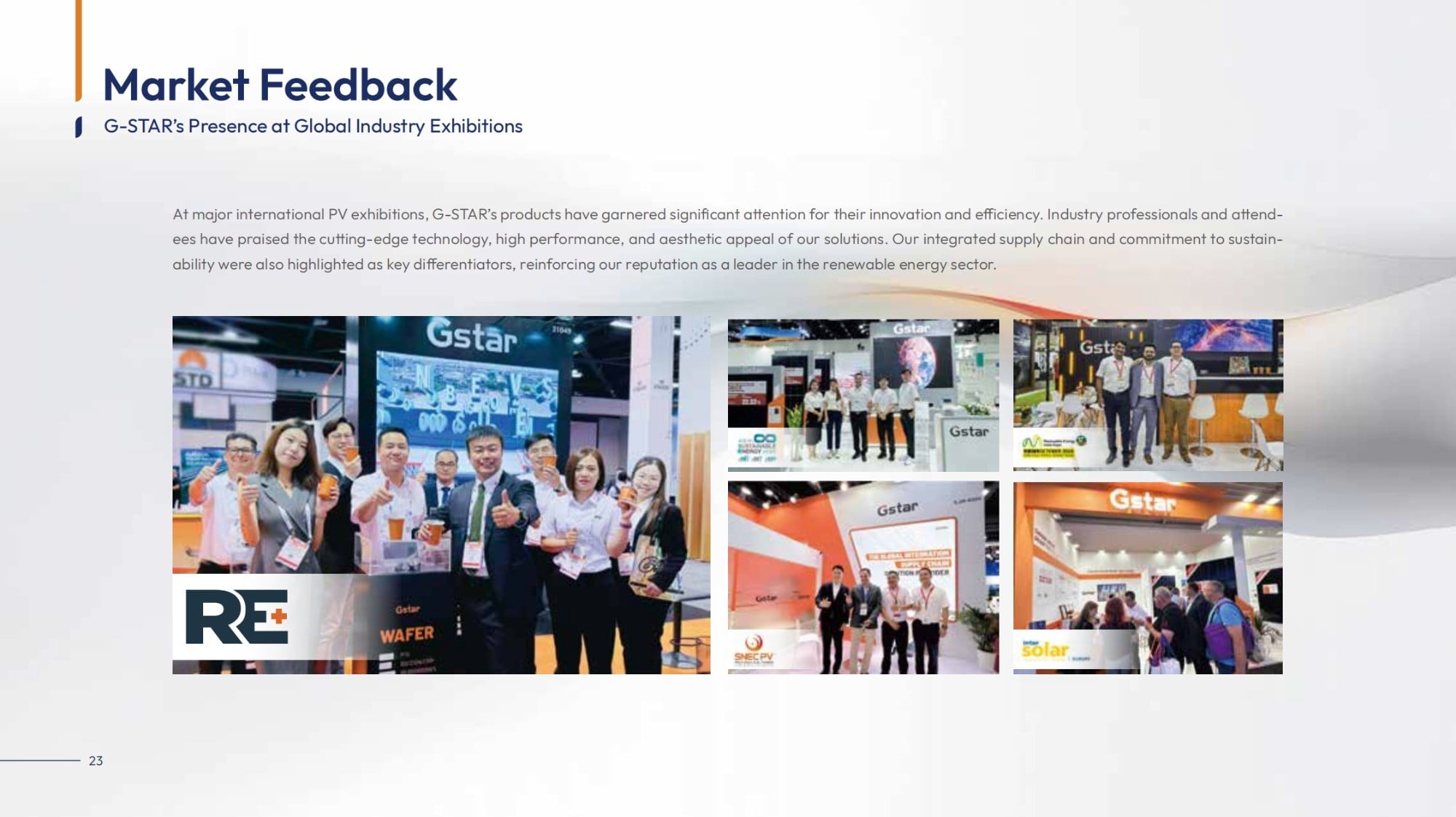

Feedback
