Energy Storage SY Series

天辰尚能科技(深圳)有限公司
标称容量
100 ~ 400 Ah
标称电压
12.8 ~ 51.2 V
技术
LFP(磷酸锂铁)
地区
中国大陆 中国大陆
重量
15 ~ 182 kg
产品质量保证
5 年
循环寿命
5000@80%DOD
设计寿命
20 年
配置
堆叠式
联系生产商
注意: 您的询盘将直接发送至天辰尚能科技(深圳)有限公司
  • Long Lifespan

  • Fast charge high rate

  • High Efficiency

  • Multiple series and parallel

  • High Safety

  • Multifunction: Active Equalizer, Bluetooth, and display (optional)

产品特点

产品型号
SY12-100 SY12-100E SY12-200 SY25.6-100 SY25.6-200 SY25.6-300 SY51.2-100 SY51.2-200 SY51.2-300 SY51.2-400
产品质量保证 (最低) 5 年
配置 堆叠式
储能系统技术 LFP(磷酸锂铁)
安装方式 地板


标称电压
12.8 V 12.8 V 12.8 V 25.6 V 25.6 V 25.6 V 51.2 V 51.2 V 51.2 V 51.2 V
标称容量
100Ah@20hr 100Ah@20hr 200Ah@20hr 100Ah@20hr 200Ah@20hr 300Ah@20hr 100Ah@20hr 200Ah@20hr 300Ah@20hr 400Ah@20hr
设计寿命
20 年 20 年 20 年 20 年 20 年 20 年 20 年 20 年 20 年 20 年
循环寿命 5000@80%DOD

尺寸(长*宽*高)
270x600x65 mm 275x510x70 mm 275x850x70 mm 330x442x125 mm 600x442x136 mm 580x442x155 mm 600x442x136 mm 750x442x230 mm 860x442x240 mm 970x615x240 mm
重量
15.5 Kg 15 Kg 26 Kg 25 Kg 48 Kg 55 Kg 48 Kg 118 Kg 121 Kg 182 Kg
监控 屏幕

下载公司产品详情

Our Products

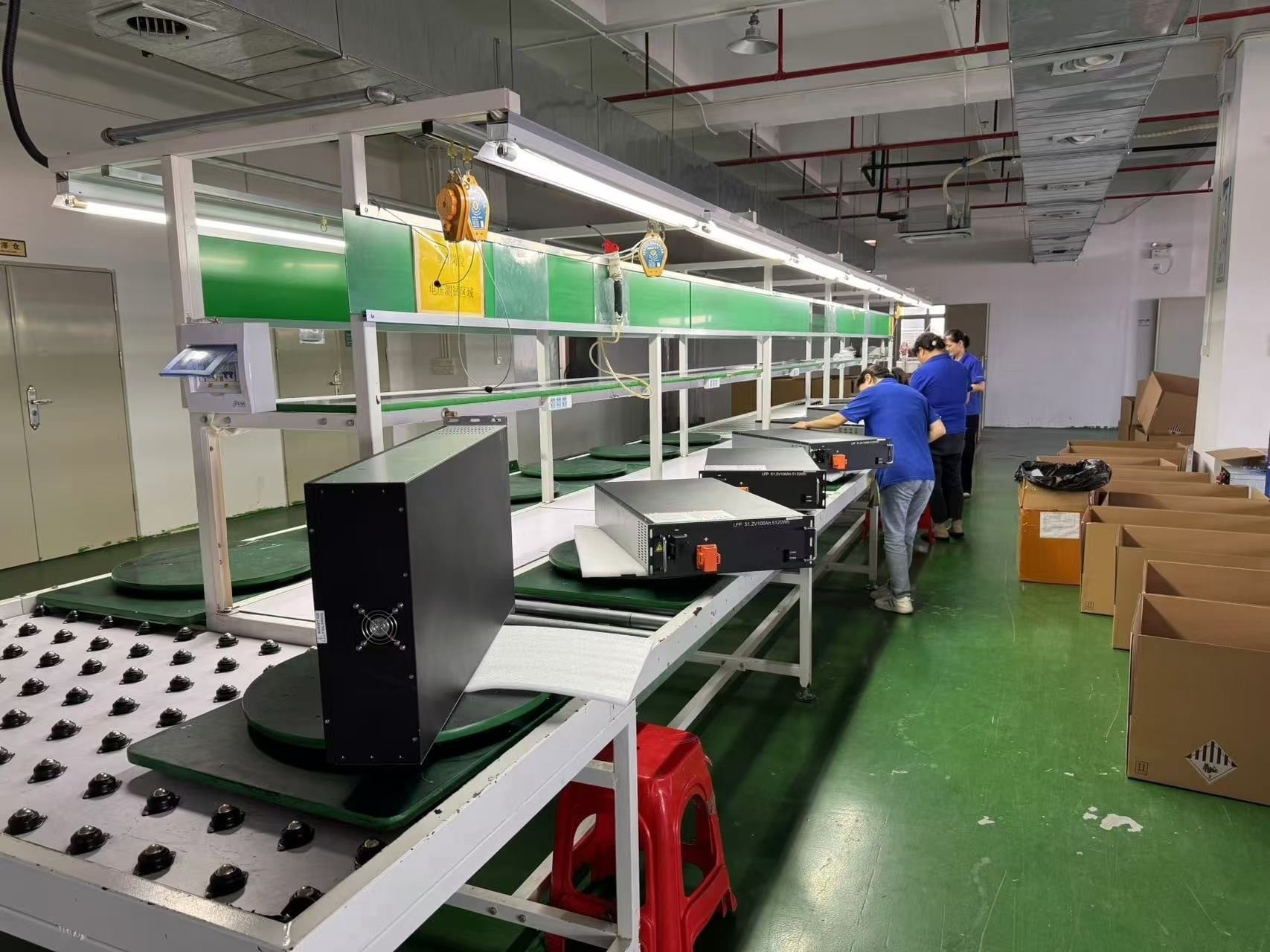

Our Factory

Our Certifications

天辰尚能科技(深圳)有限公司

Click to show company phone
https://www.tcsnpower.com
中国大陆
广东省深圳市前海深港合作区南山街道自贸西街18号前海香缤大厦1011
注意: 您的询盘将直接发送至天辰尚能科技(深圳)有限公司
公司描述

TCSN Power Technology (Shenzhen) Co., Ltd is a high-tech enterprise focused on the research, development, manufacturing, and production of lithium-ion batteries and their systems. The company specialises in producing prismatic lithium iron phosphate batteries known for their high charge/discharge rates and long cycle life. These batteries and associated systems are widely used in energy storage, uninterruptible power supplies (UPS) for data centres, specialised power applications, communications, and various other sectors.

Headquartered in Shanghai, the company has two production facilities in Huizhou and two sales centres located in Shenzhen and Sydney. With substantial research, development, and manufacturing capabilities, the company specialises in battery cells, battery management systems (BMS), lithium-ion battery systems, and inverter technology.

TCSN Power Technology (Shenzhen) Co., Ltd holds multiple management system certifications, including ISO9001, ISO14001, and ISO45001. Its products have successfully passed various certifications, such as UL, FCC, CE, CB, UN, RoHS, and REACH. The company possesses over 30 patents and has significant experience in the renewable energy industry.

TCSN's products are highly reliable, designed for high charge/discharge rates, and take into account both quality and cost-effectiveness. They have received positive feedback from both domestic and international markets.
