Low Voltage UPS System SC Series

天辰尚能科技(深圳)有限公司
标称容量
标称容量
27 ~ 100 Ah
标称电压
标称电压
25.6 ~ 192 V
技术
技术
锂离子
地区
地区
中国大陆 中国大陆
重量
重量
18 ~ 93 kg
设计寿命
设计寿命
20 年
配置
配置
堆叠式
联系生产商
注意: 您的询盘将直接发送至天辰尚能科技(深圳)有限公司
  • Long lifespan

  • Modular design is simple and fast

  • Multi Equilibrium: active current sharing, mixed use of old and new products. Intelligent balancing techonology to improve consistency

  • Multiple series and parallel: flexible configuration, support series and parallel connections

产品特点

产品型号
SC24-50 SC24-100 SC48-50 SC48-100 SC72-50 SC72-100 SC96-50 SC96-100 SC192-27 SC192-50
配置 堆叠式
储能系统技术 锂离子
部件 电池管理系统
安装方式 机架


标称电压
25.6 V 25.6 V 51.2 V 51.2 V 76.8 V 76.8 V 102.4 V 102.4 V 192 V 192 V
标称容量
50Ah@20hr 100Ah@20hr 50Ah@20hr 100Ah@20hr 50Ah@20hr 100Ah@20hr 50Ah@20hr 100Ah@20hr 27Ah@20hr 50Ah@20hr
设计寿命
20 年 20 年 20 年 20 年 20 年 20 年 20 年 20 年 20 年 20 年

尺寸(长*宽*高)
300x442x86 mm 300x442x130 mm 450x442x86 mm 422x442x130 mm 600x442x130 mm 630x442x130 mm 650x442x130 mm 650x442x174 mm 700x442x155 mm 620x442x260 mm
重量
18 Kg 24 Kg 32.5 Kg 41.5 Kg 40 Kg 71 Kg 52 Kg 86 Kg 55 Kg 93 Kg
通信 CAN, RS485
监控 屏幕

下载公司产品详情

Our Products

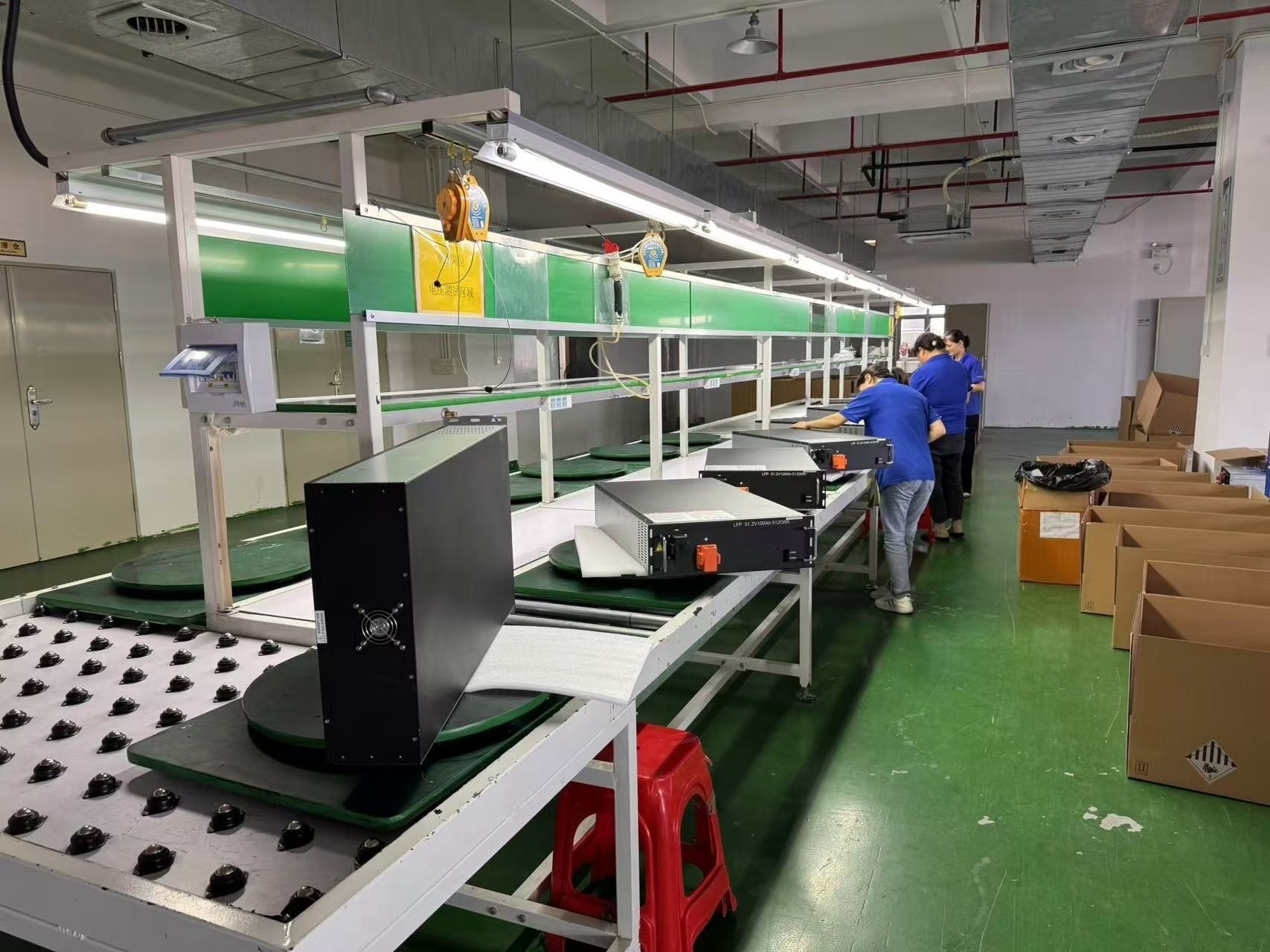

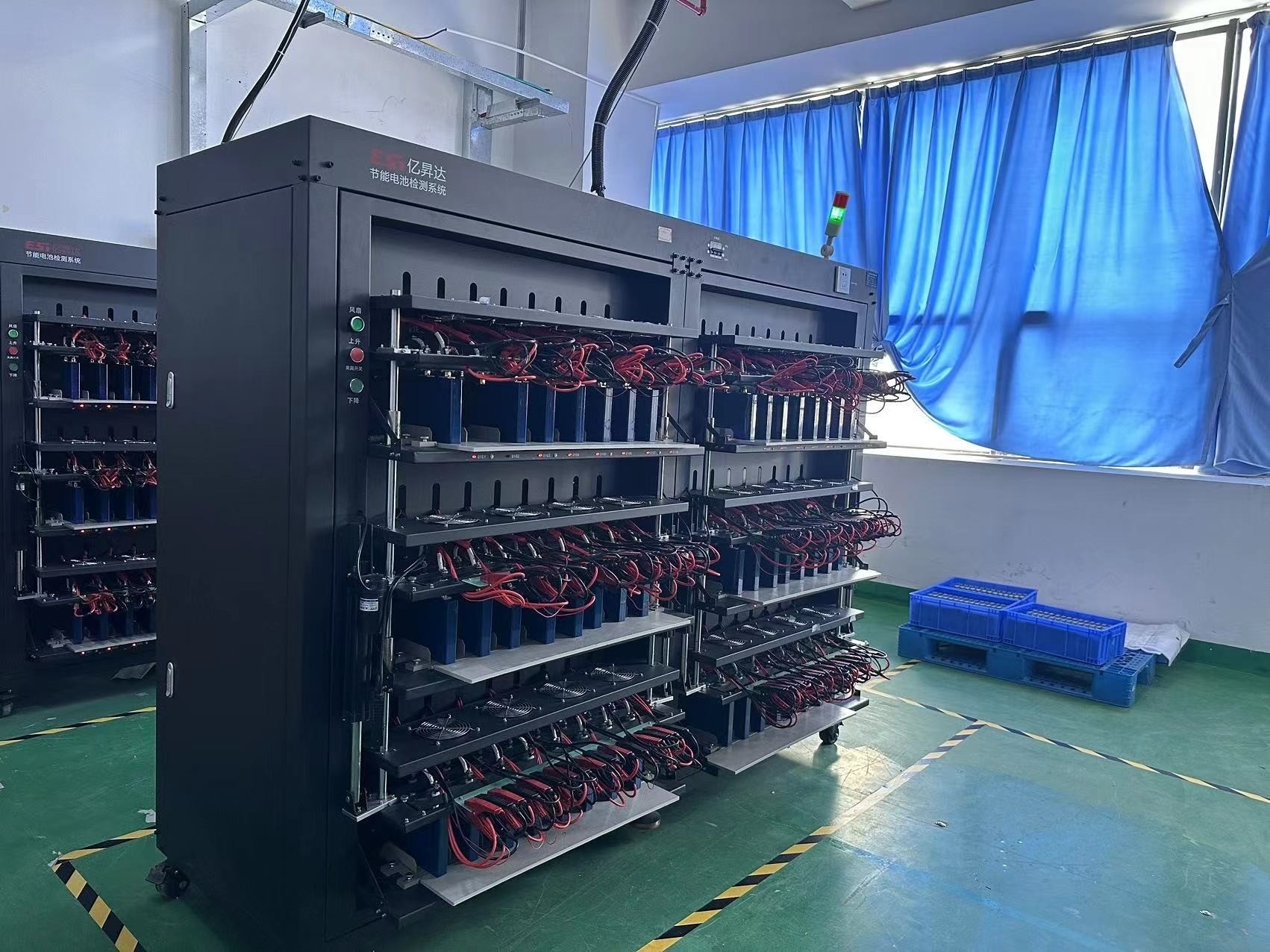

Our Factory

Our Certifications

天辰尚能科技(深圳)有限公司

Click to show company phone
https://www.tcsnpower.com
中国大陆
广东省深圳市前海深港合作区南山街道自贸西街18号前海香缤大厦1011
注意: 您的询盘将直接发送至天辰尚能科技(深圳)有限公司
公司描述

TCSN Power Technology (Shenzhen) Co., Ltd is a high-tech enterprise focused on the research, development, manufacturing, and production of lithium-ion batteries and their systems. The company specialises in producing prismatic lithium iron phosphate batteries known for their high charge/discharge rates and long cycle life. These batteries and associated systems are widely used in energy storage, uninterruptible power supplies (UPS) for data centres, specialised power applications, communications, and various other sectors.

Headquartered in Shanghai, the company has two production facilities in Huizhou and two sales centres located in Shenzhen and Sydney. With substantial research, development, and manufacturing capabilities, the company specialises in battery cells, battery management systems (BMS), lithium-ion battery systems, and inverter technology.

TCSN Power Technology (Shenzhen) Co., Ltd holds multiple management system certifications, including ISO9001, ISO14001, and ISO45001. Its products have successfully passed various certifications, such as UL, FCC, CE, CB, UN, RoHS, and REACH. The company possesses over 30 patents and has significant experience in the renewable energy industry.

TCSN's products are highly reliable, designed for high charge/discharge rates, and take into account both quality and cost-effectiveness. They have received positive feedback from both domestic and international markets.
