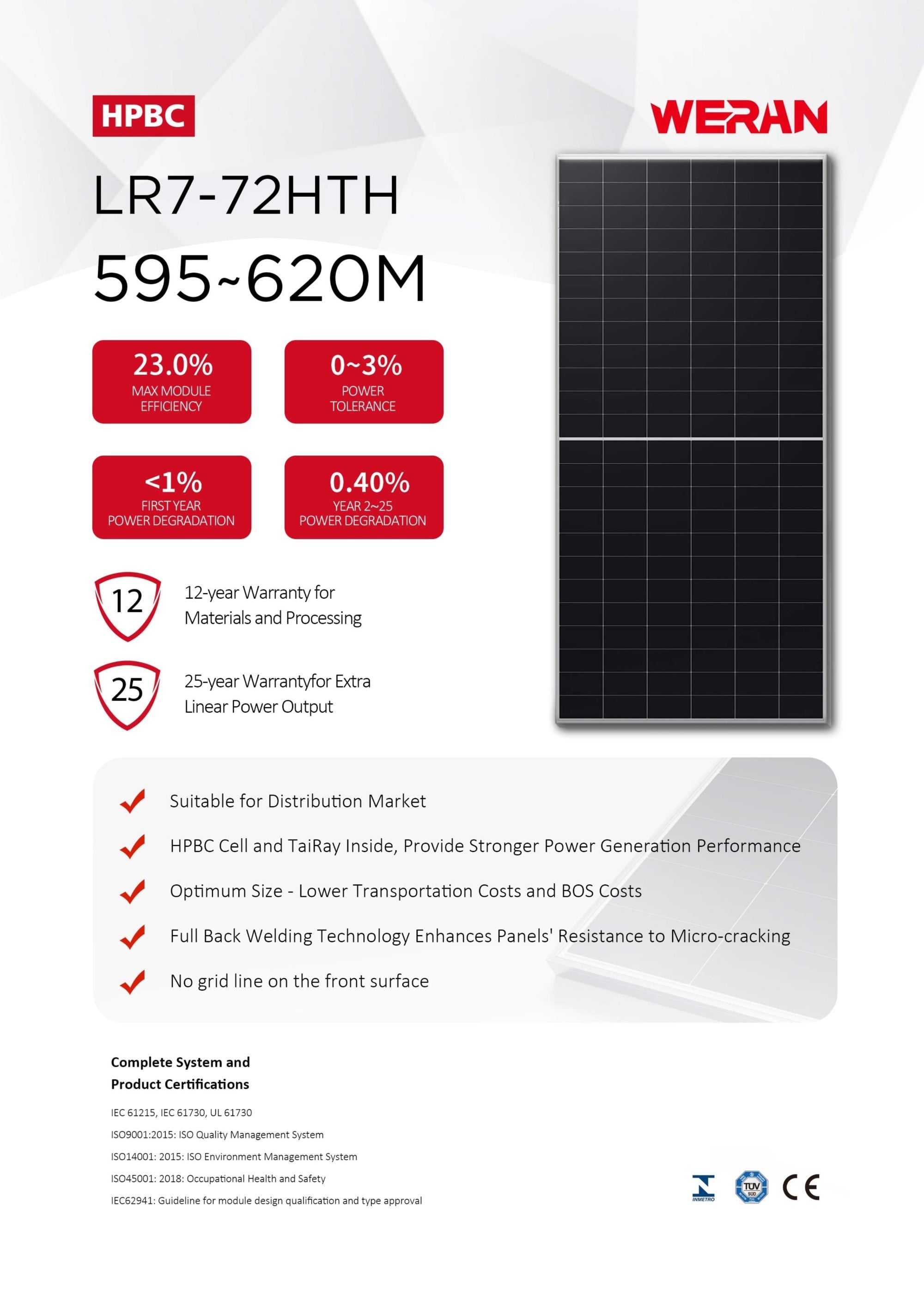

Longi Solar Hi-MO7 LR7-72HTH 595~620M

上海蔚然光电股份有限公司
技术
背接触式, N型
功率范围
595 - 620 Wp
地区
中国大陆 中国大陆
重量
28.5 kg
产品质量保证
12 年
功率输出保证
99 % 1年年限质保,89.4 % 25年年限质保
组件效率
22 % - 23 %
尺寸
2382x1134x30 mm
玻璃厚度
3.2 mm
温度系数(Pmax)
-0.28 %/°C
电池片数量
144
价 格:
起价
¥0.689 / Wp*
*
每件价格
每件价格
最低订购量 36+
交货时间 5 days
LR7-72HTH 595M ¥410
LR7-72HTH 600M ¥414
LR7-72HTH 605M ¥417
LR7-72HTH 610M ¥420
LR7-72HTH 615M ¥424
LR7-72HTH 620M ¥427
联系生产商
注意: 您的询盘将直接发送至上海蔚然光电股份有限公司
  • Suitable for Distribution Market

  • Simple design embodies modern style

  • Highest efficiency with the best energy generation performance

  • Better product warranty, better service

产品特点

类型 单晶硅
产品型号
LR7-72HTH 595M LR7-72HTH 600M LR7-72HTH 605M LR7-72HTH 610M LR7-72HTH 615M LR7-72HTH 620M

产品质量保证 12 年
功率输出保证 99 % 1年年限质保,89.4 % 25年年限质保
0.42 %
功率偏差 0 ~ +3 %
电性能参数(STC)
峰值功率 (Pmax)
595 Wp 600 Wp 605 Wp 610 Wp 615 Wp 620 Wp
峰值工作电压(Vmpp)
43.72 V 43.88 V 44.03 V 44.18 V 44.33 V 44.48 V
峰值工作电流(Impp)
13.62 A 13.69 A 13.75 A 13.81 A 13.88 A 13.94 A
开路电压(Voc)
51.97 V 52.12 V 52.27 V 52.42 V 52.57 V 52.72 V
短路电流(Isc)
14.62 A 14.68 A 14.74 A 14.8 A 14.87 A 14.93 A
组件效率
22 % 22.2 % 22.4 % 22.6 % 22.8 % 23 %
电性能参数(NOCT)
峰值功率 (Pmax)
444.7 Wp 448.4 Wp 452.1 Wp 455.9 Wp 459.6 Wp 463.4 Wp
峰值工作电压(Vmpp)
39.9 V 40.04 V 40.18 V 40.32 V 40.46 V 40.59 V
峰值工作电流(Impp)
11.15 A 11.21 A 11.26 A 11.31 A 11.36 A 11.42 A
开路电压(Voc)
48.97 V 49.11 V 49.17 V 49.22 V 49.36 V 49.59 V
短路电流(Isc)
11.81 A 11.86 A 11.91 A 11.95 A 12.01 A 12.06 A
最大耐久温度 45±2 °C

工作温度 -40 - 85 °C
温度系数(Pmax) -0.28 %/°C
温度系数(Voc) -0.23 %/°C
温度系数(Isc) 0.05 %/°C

最大系统电压 1500 V
保险丝额定电流 25 A

组件尺寸(高/宽/厚) 2382x1134x30 mm
重量 28.5 kg
电池片数量 144
玻璃类型 钢化
玻璃厚度 3.2 mm
边框类型 阳极氧化铝
接线盒防护等级 IP 68
电缆截面 4 mm2
电缆长度 1400 mm

下载公司产品详情

上海蔚然光电股份有限公司

Click to show company phone
https://www.weransolar.com
中国大陆
201106 上海市闵行区申虹路666弄正荣中心南区3号楼503室
员工数: 150
注意: 您的询盘将直接发送至上海蔚然光电股份有限公司

晶体硅

产量 (MW)/: MWp
单晶硅
功 率 范 围(Wp): 420-670
公司描述

威然太阳能有限公司(WERAN)成立于2015年,是一家专业从事太阳能智能发电系统的新兴能源企业。我们集产品设计、制造、销售、安装及设备维护于一体。核心服务包括光伏组件制造、国际贸易、新能源项目EPC总承包以及新能源汽车充电站投资。威然还率先推出“农光互补”和“工商业光伏协同”等创新解决方案。公司在中国各地设有子公司,并在全球范围内拓展业务,致力于推动新能源领域的发展,促进城市建设,推动综合产业解决方案的实施。

产品

LONGi Hi-MO 7 LR5-78HGD 615–645M

Built on advanced HPDC cell technology, the LONGi Hi-MO 7 module delivers outstanding efficiency and long-term reliability for distributed solar projects. With a maximum power output of up to 645W and module efficiency reaching 23.1%, it provides higher energy yield and stronger return on investment.

Featuring half-cell design, low temperature coefficient, and optimized power degradation performance, Hi-MO 7 ensures stable power generation even under challenging environmental conditions. The module is backed by 12-year product warranty and 30-year linear power output guarantee, ensuring dependable performance throughout its lifecycle.

A high-performance solution designed to maximize system value, reduce LCOE, and deliver consistent energy generation over decades.

LONGi Hi-MO X10 Scientist LR7-72HVD 640–665M

Built with advanced TaiRay wafer and BC cell technology, the LONGi Hi-MO X10 module delivers exceptional efficiency, reliability, and power generation performance for modern solar installations. With a power output of up to 665W and maximum module efficiency reaching 24.6%, it provides outstanding energy yield and improved project returns.

Designed for demanding environments, Hi-MO X10 offers lower operating temperature and enhanced stability, making it particularly suitable for industrial and commercial rooftop systems and high-temperature regions. Backed by a 15-year product warranty and a 30-year linear power output warranty, it ensures long-term reliability and consistent performance across its entire lifecycle.

A premium high-efficiency module engineered to reduce LCOE, maximize system value, and deliver stable energy generation for decades.

LONGi Hi-MO 7 LR8-66HGD 620W

The LR8-66HGD 620W module is a high-performance bifacial solar solution designed for utility-scale and large commercial PV projects. Powered by advanced HPDC cell technology and a half-cell design, it delivers a rated output of 620W with up to 23.0% module efficiency, enabling higher energy yield per unit area.

With 0–3% positive power tolerance, less than 1% first-year degradation, and a low 0.4% annual degradation from year 2 to year 30, the module ensures stable and predictable long-term performance. Its high bifacial factor of 80% ±5%, combined with an excellent temperature coefficient (-0.28%/°C), provides significant additional energy gain under high irradiance and reflective ground conditions.

The robust double-glass structure, high mechanical load capacity (5400Pa front / 2400Pa rear), and IP68-rated junction box enhance durability in harsh environments. Backed by a 12-year product warranty and an industry-leading 30-year linear power output warranty, the LR8-66HGD 620W is a reliable choice for projects seeking long-term value and maximum returns.
